In stock
Product Code
CA456A/W
SKU
CT9533CA

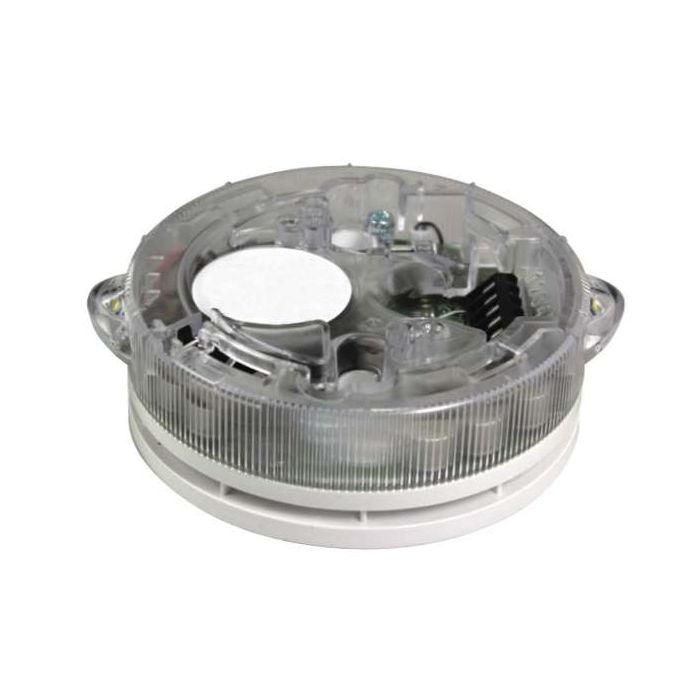

C-TEC CAST C-3-8 Base VAD c/w 92dB(A) Sounder
CAST C-3-8 Addressable Base VAD C/W 92dB(A) Sounder
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
An addressable Base Sounder VAD LPCB certified to EN54-3, 23 & 17 and Kiwa Telefication & DBI certified to EN54-13.Also certified to the relevant parts of EN54 with Swedish certification body SBSC.
Features
- Provides ‘C-3-8’ rated light distribution.
- Impressive 92dB(A) sound output @ 1m.
- Onboard short-circuit loop isolator.
- 12.5mA typical alarm current (460µA typical quiescent) @ 27-40V DC.
- Group addressing facility allows multiple devices to be operated simultaneously.
- 4 selectable volume levels and 31 selectable tones.
- Optional BF330CTLIDW white or BF330CTLIDR red cap available for stand-alone use.
- IP21C rated.
- White ceiling fixing plate & detector spur wires included.
| Approval | EN54-3, EN54-13, EN54-17, EN54-23 |
|---|---|
| Category Type | Base Sounder Visual Alarm Device |
| Colour | White |
| IP Rating | IP21C |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
| Approvals/Certifications | Certified by SBSC to the relevant parts of EN54, DBI certified to EN54-13, LPCB certified to EN54-3, 17 & 23 and Kiwa Telefication certified to EN54-13 |
| Compatibility | C-TEC's XFP/ZFP CAST Protocol addressable fire panels |
| Application/Operation | Designed to be ceiling mounted - either stand alone with a red or white cap or as part of a stacked Sounder/VAD/Detector Base combination |
| VAD category & coverage | C-3-8 |
| Flash rate & Colour | 0.5Hz / White |
| Supply/operating voltage | 27V to 40V DC |
| Quiescent current | 460uA typical @ 27 to 40V DC (typical) |
| Nominal SPL (Sound Pressure Level) | 92dB(A) when set to tone 1 |
| Alarm current | 12.5mA @ 27 to 40V DC (typical, VAD lit, sounder on max) |
| Indicators | Polling (red LED) |
| Dimensions | 122mm Diameter x 46mm deep (not including optional CAST detector and base) |
| IP Rating | IP21C (Type A) |
| Weight | 170g |
| Operating conditions/temperature | -10°C to +55°C. Max 95% RH (non-condensing) |
VAD coverage depends on factors such as ambient light and viewing angle (direct or indirect). The table below summarises how the coverage of the CA456A/W increases or decreases based on these factors. To use the table, calculate the lux level of the area requiring coverage, determine whether the viewing angle will be direct or indirect then read off the coverage in the relevant column.
| Lux Level in area requiring coverage | Ceiling Mounted Direct Viewing | Ceiling Mounted Indirect Viewing |
| 000-101 lux | 8.3m H x 22.4m W | 3.9m H x 10.4m W |
| 100-200 lux | 7.2m H x 19.2m W | 3.6m H x 9.6m W |
| 201-300 lux | 5.7m H x 15.2m W | 3.0m H x 8.0m W |
| 301-400 lux | 4.2m H x 11.2m W | 2.4m H x 6.4m W |
| 401-500 lux | 3.3m H x 8.8m W | 1.8m H x 4.8m W |
| 501-600 lux | 2.7m H x 7.2m W | 1.5m H x 4.0m W |
| 601-700 lux | 2.1m H x 5.6m W | not applicable |
| 701-800 lux | 1.5m H x 4.0m W | not applicable |
