In stock
Product Code
CA450A/SR
SKU
CT3517R

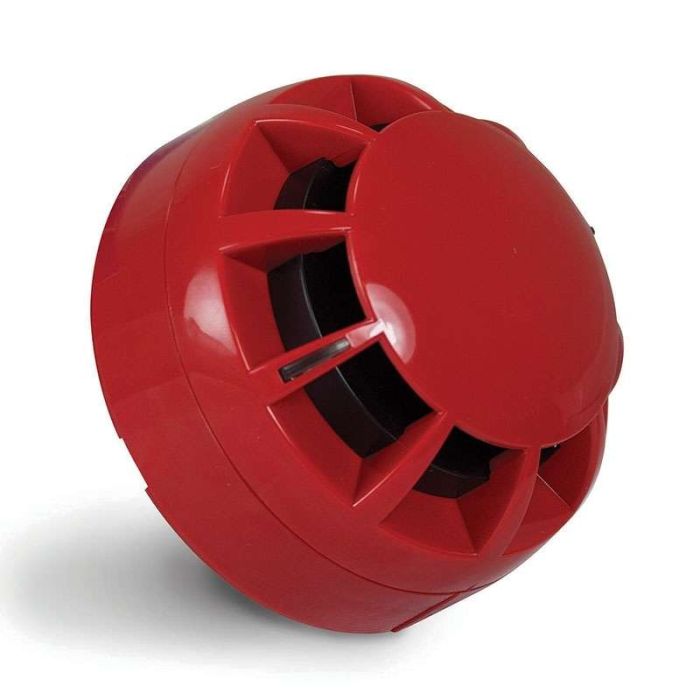

C-TEC CAST Compact 96dB(A) Wall Sounder
CAST Compact Addressable 96dB(A) Wall Sounder, Red
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
An Addressable Red Wall Sounder LPCB certified to EN54-3 & 17 and Kiwa Telefication & DBI certified to EN54-13.
Features
- Also certified to the relevant parts of EN54 with Swedish certification body SBSC.
- Impressive 96dB(A) sound output @ 1m.
- Onboard short-circuit loop isolator.
- 5.5mA typical alarm current (460µA typical quiescent current) @ 24-40V DC (Sounder on max).
- Group addressing facility allows multiple devices to be operated simultaneously.
- 4 selectable volume levels and 31 selectable tones.
- IP21C rated.
| Approval | EN54-3, EN54-13, EN54-17 |
|---|---|
| Base | Shallow |
| Category Type | Sounder |
| Colour | Red |
| IP Rating | IP21C |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
| Approvals/Certifications | Certified by SBSC to the relevant parts of EN54, DBI certified to EN54-13, LPCB certified to EN54-3 & 17 and Kiwa Telefication certified to EN54-13 |
| Compatibility | C-TEC's XFP/ZFP CAST Protocol addressable fire panels |
| Application/Operation | Suitable for wall or ceiling mounting |
| Supply/operating voltage | 24V to 40V DC |
| Quiescent current | 460uA |
| Nominal SPL (Sound Pressure Level) | 96dB(A) when set to tone 1 |
| Alarm current | 5.5mA typical @ 27 to 40V DC (Sounder on max) |
| Indicators | Polling (red LED) |
| Dimensions | 102mm Diameter x 63mm deep |
| IP Rating | IP21 (Type A) |
| Weight | 160g |
| Operating conditions/temperature | -10°C to +55°C. Max 95% RH (non-condensing) |
