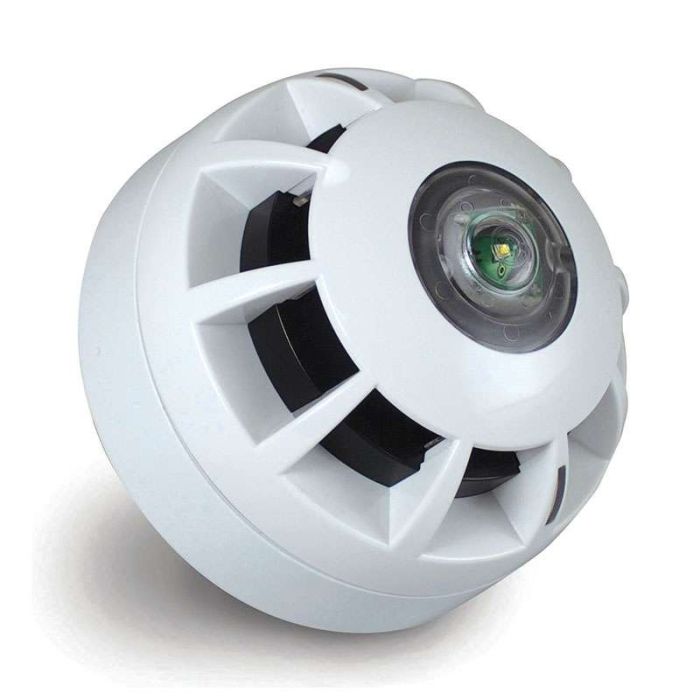

C-TEC CAST Compact C-3-8 Ceiling VAD Only
CAST Compact Addressable C-3-8 Ceiling VAD only
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
An Addressable Ceiling VAD only LPCB certified to EN54-17 & 23 and Kiwa Telefication & DBI certified to EN54-13.
Features
- Also certified to the relevant parts of EN54 with Swedish certification body SBSC.
- Provides ‘C-3-8’ light distribution when ceiling mounted.
- Can also provide ‘W-3-3.1’ light distribution when wall mounted.
- Onboard short-circuit loop isolator.
- 460µA quiescent current.
- 7mA typical alarm current (460µA typical quiescent current) @ 27-40V DC (VAD lit).
- Group addressing facility allows multiple devices to be operated simultaneously.
- IP21C rated.
| Approval | EN54-13, EN54-17, EN54-23 |
|---|---|
| Category Type | Visual Alarm Device |
| Colour | White |
| IP Rating | IP21C |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
| Approvals/Certifications | Certified by SBSC to the relevant parts of EN54, DBI certified to EN54-13, LPCB certified to EN54-17 & 23 and Kiwa Telefication certified to EN54-13 |
| Compatibility | C-TEC's XFP/ZFP CAST Protocol addressable fire panels |
| Application/Operation | Provides C-3-8 rated coverage coverage when ceiling mounted. Can also be wall mounted to provide W-3-3.1 rated coverage. |
| VAD category & coverage | C-3-8 or W-3-3.1 |
| Flash rate & Colour | 0.5Hz / White |
| Supply/operating voltage | 27V to 40V DC |
| Quiescent current | 460uA |
| Nominal SPL (Sound Pressure Level) | 96dB(A) when set to tone 1 |
| Alarm current | 12.5mA typical @ 27 to 40V DC (VAD lit) |
| Indicators | Polling (red LED) |
| Dimensions | 102mm Diameter x 63mm deep |
| IP Rating | IP21 (Type A) |
| Weight | 175g |
| Operating conditions/temperature | -10°C to +55°C. Max 95% RH (non-condensing) |
