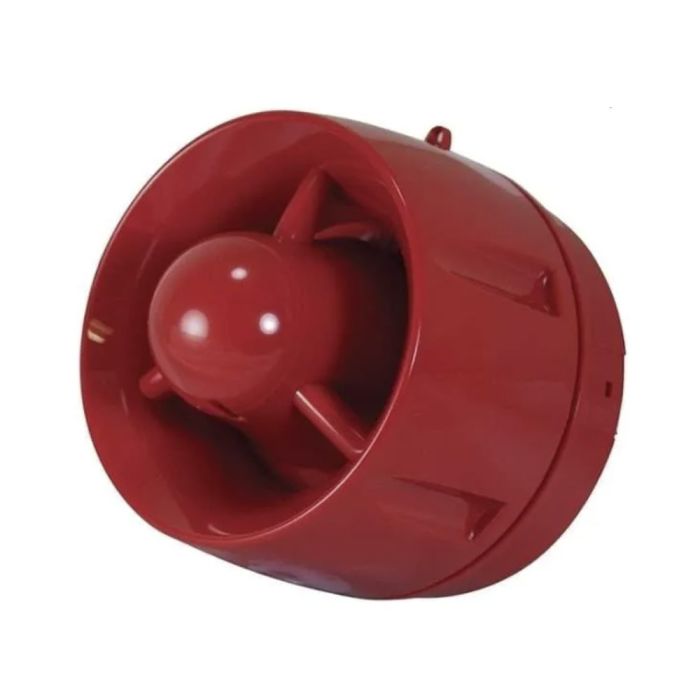

C-TEC CAST Hi-Output 100dB(A) Wall Sounder, Shallow Base, Red
CAST Hi-Output 100dB(A) Addressable Wall Sounder, Shallow base, Red
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
An Addressable Red Sounder LPCB certified to EN54-3 & 17 and Kiwa Telefication & DBI certified to EN54-13.
Features
- Also certified to the relevant parts of EN54 with Swedish certification body SBSC.
- Impressive 100dB(A) sound output @ 1m.
- Onboard short-circuit loop isolator.
- 6.5mA typical alarm (460µA typical quiescent current) @24-40V DC (Sounder on max).
- Group addressing facility allows multiple devices to be operated simultaneously.
- 4 selectable volume levels and 31 selectable tones.
- IP21C (Type A) rated.
| Approval | EN54-3, EN54-13, EN54-17 |
|---|---|
| Base | Shallow |
| Category Type | Sounder |
| Colour | Red |
| IP Rating | IP21C |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
| Approvals/Certifications | Certified by SBSC to the relevant parts of EN54, DBI certified to EN54-13, LPCB certified to EN54-3 & 17 and Kiwa Telefication certified to EN54-13 |
| Compatibility | C-TEC's XFP/ZFP CAST Protocol addressable fire panels |
| Application/Operation | Designed to be wall mounted. Indoor areas only |
| Supply/operating voltage | 24V to 40V DC |
| Quiescent current | 460uA typical |
| Nominal SPL (Sound Pressure Level) | 100dB(A) when set to tone 1 |
| Alarm current | 6.5mA @ 24 to 40V DC (Sounder on Max) |
| Indicators | Polling (red LED) |
| Dimensions | 108mm Diameter x 99mm deep |
| IP Rating | IP21C (Type A) |
| Weight | 215g |
| Operating conditions/temperature | -10°C to +55°C. Max 95% RH (non-condensing) |
