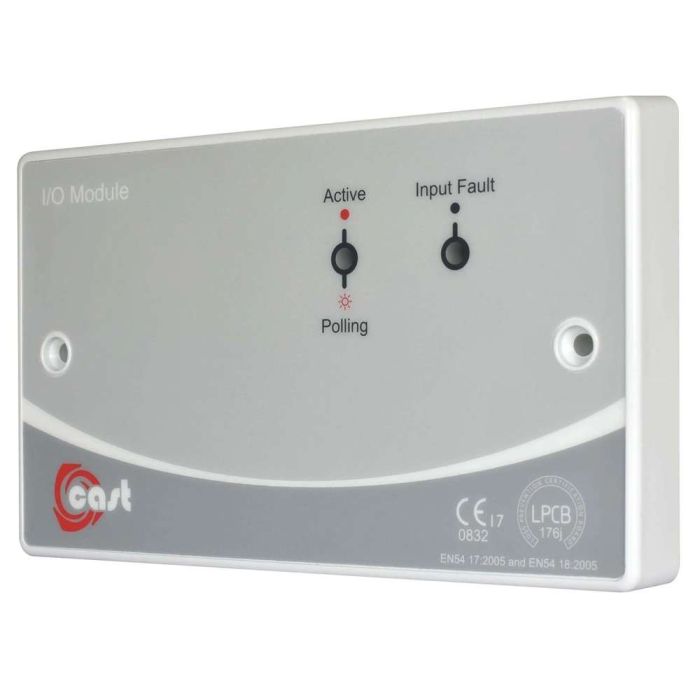

C-TEC CAST Input Output Module
CAST Addressable Input Output Module
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
An Addressable Input Output Unit LPCB certified to EN54-17 & 18 and Kiwa Telefication & DBI certified to EN54-13.
Features
- Also certified to the relevant parts of EN54 with Swedish certification body SBSC.
- Incorporates the functions of a switch monitor, zone monitor and output unit.
- Can be configured to monitor any combination of:-
• Up to 20 conventional detectors & 10 MCPs
• Any normally open switch with an EOL resistor fitted.
• A simple normally open or closed switch (non-fault monitored). - Onboard short-circuit loop isolator.
- 5.5mA typical alarm current (1.3mA typical quiescent current) @ 22-40V DC.
- Indicators for Loop polling, input faults and relay status.
- Can switch 1A@30V DC (or 0.3A@125V AC)
- Includes volt free changeover contacts that can be used to trigger rollershutter doors, gas shut-off valves, smoke vents, etc.
- Mountable on a C-TEC NCP-26 surface box or a standard UK 25mm double gang back box (not supplied).
| Approval | EN54-13, EN54-17 |
|---|---|
| Category Type | Interface |
| Colour | Grey |
| Interface Type | Input/Output |
| IP Rating | IP40 |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
| Approvals/Certifications | Certified by SBSC to the relevant parts of EN54, DBI certified to EN54-13, LPCB certified to EN54-17 & 18 and Kiwa Telefication certified to EN54-13 |
| Compatibility | C-TEC's XFP/ZFP CAST Protocol addressable fire panels |
| Application/Operation | Incorporates the functions of a switch monitor, zone monitor and output unit in one device |
| Supply/operating voltage | 22V to 40V DC |
| Quiescent current | 1.3mA typical |
| Activation current | 5.5mA @ 22 to 40V DC |
| Auxiliary relays | One volt free single pole changeover relay rated at 1A @ 30V DC (or 0.3A @ 12V AC), Non-monitored. Clean contact |
| Auxiliary Inputs | One monitored input that can be set to operate as a single zone monitor to support up to 20 ActiV detectors and 10 MCPs or (2) a monitored normally open switch triggered by a 470R |
| Indicators | Active (Lit Red): relay activated; monitored zone triggered or monitored switch closed; Polling (Flashing Red): communication check with the panel; Input Fault (Lit Yellow): fault detected |
| Connections | Six 45º screw-type connectors that can take 0.5-2.5mm2 cable: +Ve & -Ve Loop In; +Ve & -Ve Loop Out; Zone +Ve & -V. Also includes N/O, N/C & C relay connections. |
| Dimensions | 147 W x 87 H x 22 D Can be mounted on a standard 25mm UK flush or surface double gang back box |
| Construction & Finish | ABS Polycarbonate plate with a 200 micron two-tone grey velvet polyester label with red and white detailing |
| IP Rating | IP40 when correctly installed |
| Weight | 122g |
| Operating conditions/temperature | -10°C to +55°C. |
