Product Code
CA47067
SKU
CT4580

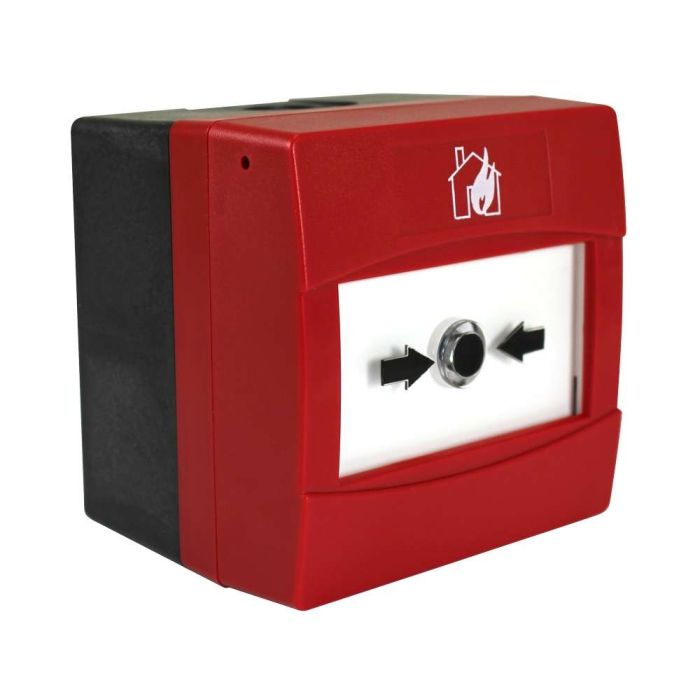

C-TEC CAST IP67 Rated Red Manual Call Point
CAST IP67 Rated Addressable Red Manual Call Point
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
A high-quality IP67 rated surface-mounting red manual call point for use with C-TEC’s XFP & ZFP ‘CAST’ protocol Addressable Fire Panels.
Features
- Onboard short-circuit loop isolator.
- Smooth-action resettable element mimics the feel of breaking glass.
- Supplied with reset/back box removal key and ‘Not in Use’ label.
- Red LED ‘alarm ring’ illuminates call point face upon activation.
- Photoluminescent operating window remains visible for up to 5 minutes.
- 5mA typical alarm current (370uA typical quiescent) @ 22-40V DC.
| Category Type | Call Point |
|---|---|
| Colour | Red |
| Element | Plastic |
| IP Rating | IP67 |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
| Compatibility | C-TEC's XFP/ZFP CAST Protocol addressable fire panels |
| Application/Operation | Surface mounting only |
| Supply/operating voltage | 22V to 40V DC |
| Quiescent current | 370uA typical @ 22 to 40V DC |
| Alarm current | 5mA typical (LEDs illuminated) @ 22 to 40V DC |
| Indicators | Red 'alarm ring'. Lit steady red (when activated) and flashing red (when polling) |
| Connections | Loop IN, Loop OUT (x2) |
| Dimensions | 87 W x 88 H x 72 D (includes back box) |
| Construction & Finish | Red ABS polycarbonate; Glass fibre window |
| IP Rating | IP67 |
| Weight | 228g |
| Operating conditions/temperature | -10°C to +55°C. |
