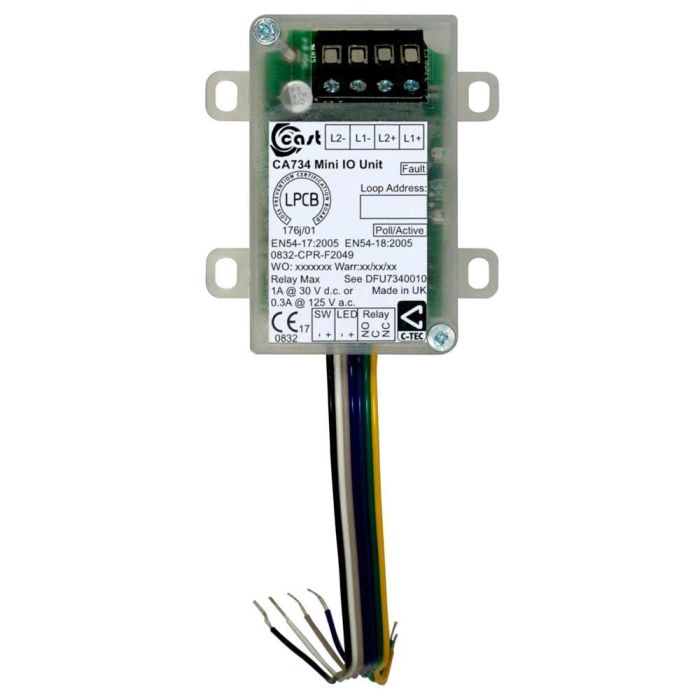

C-TEC CAST Mini I/O Unit
CAST Mini I/O Unit
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
An Addressable Mini I/O Unit LPCB certified to EN54-17 & 18 and Kiwa Telefication & DBI certified to EN54-13. Also certified to the relevant parts of EN54 with Swedish certification body SBSC.
Features
- Includes a switch monitor, signal relay and onboard loop isolator.
- 7mA typical alarm current (1mA typical quiescent current) @ 22-40V DC.
- Four plastic tabs for surface or panel mounting.
- Includes a 1A 30V DC volt-free changeover relay. Can also switch 0.3A @125V AC.
- Offers Switch +Ve, –Ve, LED +V, –Ve and changeover relay connections
- Future header pin offers expansion opportunities for peripheral I/O devices.
| Approval | EN54-13, EN54-17 |
|---|---|
| Category Type | Interface |
| Interface Type | Input/Output |
| IP Rating | IP40 |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
| Approvals/Certifications | Certified by SBSC to the relevant parts of EN54, DBI certified to EN54-13, LPCB certified to EN54-17 & 18 and Kiwa Telefication certified to EN54-13 |
| Compatibility | C-TEC's XFP/ZFP CAST Protocol addressable fire panels |
| Supply/operating voltage | 22V to 40V DC |
| Quiescent current | 1mA typical |
| Activation current | 7mA @ 22 to 40V DC |
| Auxiliary relays | One volt-free single pole changeover relay rated at 1A @ 30V DC (or 0.3A @ 125V AC). Non-monitored. Clean contact. |
| Auxiliary Inputs | One monitored input that can be set to operate as: (1) a single zone monitor to support up to 20 ActiV detectors and 10 MCPs or (2) a monitored normally open switch triggered by a 470R |
| Indicators | Single Red (Relat active & Polling); Single Yellow (Monitored Input fault) |
| Dimensions | 65 W x 65 H x 20 D (excluding terminal block & ribbon cable) Ribbon cable is 150mm length |
| Construction & Finish | Clear ABS polycarbonate enclosure |
| IP Rating | IP40 |
| Weight | 47g |
| Operating conditions/temperature | -10°C to +55°C. |
