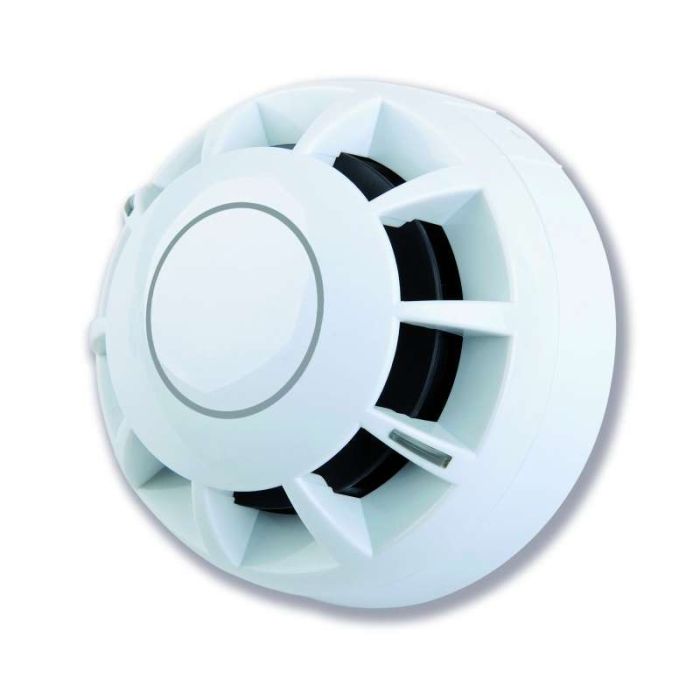

C-TEC CAST Optical Smoke Detector
CAST Optical Smoke Addressable Detector
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
A high-quality smoke detector for use with C-TEC’s XFP & ZFP ‘CAST’ protocol Addressable Fire Panels.
Features
- LPCB certified to EN54 parts 7 & 17 and Kiwa Telefication & DBI certified to EN54-13.
- Also certified to the relevant parts of EN54 with Swedish certification body SBSC.
- Smart algorithms help reduce false alarms.
- Onboard short circuit loop isolator.
- Includes two 8mm x 2mm ultra-bright red LED indicating strips.
- Drift compensation functionality.
- 0.16dB/m sensitivity/obscuration level.
- 5mA typical alarm current (370uA typical quiescent) @ 22-40V DC
- Programmable multi-function status LED.
- Compatible with C-TEC’s CA408 CAST base c/w integrated locking mechanism & ID tag.
| Approval | EN54-7, EN54-13, EN54-17 |
|---|---|
| Category Type | Detector |
| Colour | White |
| Detection | Optical |
| IP Rating | IP42 |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
| Approvals/Certifications | Certified by SBSC to the relevant parts of EN54, DBI certified to EN54-13, LPCB certified to EN54-7 & 17 and Kiwa Telefication certified to EN54-13 |
| Compatibility | C-TEC's XFP/ZFP CAST Protocol addressable fire panels |
| Type | Optical (utilises an infrared light source and photodiode) |
| Application/Operation | When there is no smoke, light passes in front of the photodiode in a straight line. When smoke enters the chamber across the path of the IR beam, light is scattered and falls on the photodiode. |
| Sensitivity | 0.16dB/m |
| Supply Wiring | 2-wire, polarity sensitive |
| Supply/operating voltage | 22V to 40V DC |
| Quiescent current | 370uA typical @22 to 40V DC |
| Alarm current | 5mA typical (LEDs illuminated) @ 22 to 40V DC |
| Indicators | 2 LED indicator strips, emitting red light when in alarm offering 360° visibility. Optional remote LED |
| Connections | Via CA408 base: 1 +Ve IN (analogue switch); 2 +Ve OUT (analogue switch); 3 Remote LED +Ve; 4 0V; 5 0V; 6 Screen; 7 Screen |
| Dimensions | 102.2mm Diameter x 37mm deep (detector only); 102.2mm diameter x 57.5mm deep (detector in base) |
| Construction & Finish | White polycarbonate casing rated to UL94 V-2 with nylon parts |
| IP Rating | IP42 |
| Weight | 99g (not in base); 154g (in base) |
| Operating conditions/temperature | -20°C to +85°C. |
| Notes | Requires a CA408 CAST base. CA408R relay base also available) |
