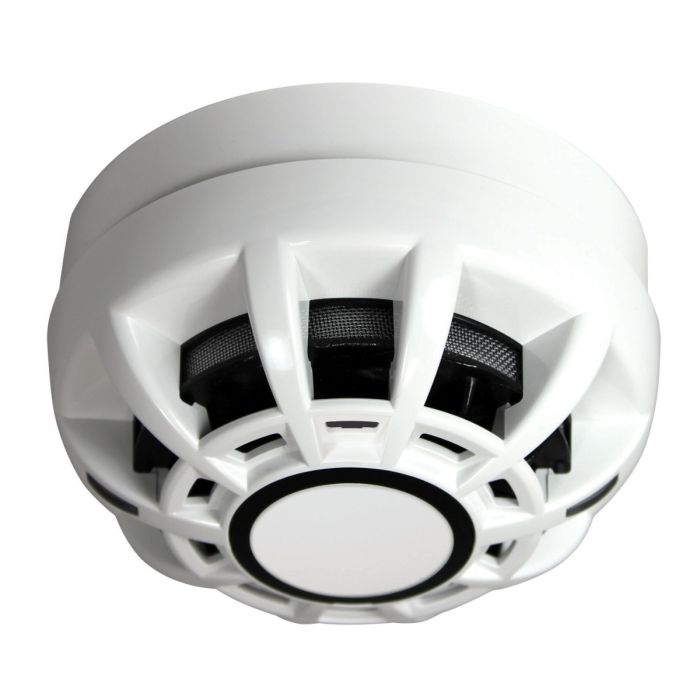

C-TEC CAST-PRO CO Fire & Smoke & Heat Multisensor
CAST-PRO CO fire, heat & smoke multisensor detector
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
A programmable CAST-PRO CO fire + smoke + heat multisensor fire detector.
Features
- Certified to EN54-5, 7, 13, 17, 29 & 31 by Kiwa Telefication and to EN54-13 by DBI.
- Compatible with C-TEC’s ZFP and XFP CAST protocol addressable fire panels.
- MASC™ (Miniature Advanced Smoke Detection Chamber) and AFFIRM™ algorithms provide incredible tolerance to false alarms whilst enhancing the detection of real fire conditions.
- Drift compensation functionality.
- Onboard short circuit loop isolator.
- Includes two 8mm x 2mm ultra-bright red LED indicating strips.
- Multiple detection modes and different sensitivities for different times of the day.
- <1mA alarm current (max vol, VAD on).
- 630uA typical quiescent current @ 40V DC.
- Compatible with C-TEC’s CA408 CAST base c/w integrated locking mechanism & ID tag.
| Approval | EN54-5, EN54-7, EN54-17 |
|---|---|
| Category Type | Detector |
| Colour | White |
| Detection | Optical, Heat, Carbon Monoxide |
| IP Rating | IP21C |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
| Approvals/Certifications | Certified to EN54-13 by Kiwa Telefication & DBI, CPR number 0063-CPR-242190020, Kiwa Telefication certified to EN54-5, 7, 17, 29 & 31 |
| Compatibility | C-TEC's XFP/ZFP CAST Protocol addressable fire panels |
| Type | CO, Heat & Smoke Fire Detection |
| Sensitivity | 12 detection modes (default for this device is mode 10) |
| Supply Wiring | 2-wire, polarity sensitive |
| Supply/operating voltage | 22V to 40V DC |
| Quiescent current | 630uA @40V |
| Alarm current (lmax at Vmin) | <1mA |
| Alarm current (lavg at Vmin) | <1mA |
| Sound pressure level (LAFmax) at Vmax at 1m | N/A |
| VAD category & Coverage | N/A |
| Indicators | 2 LED indicator strips, emitting red light when in alarm offering 360° visibility. Optional remote LED |
| Connections | Via CA408 base: 1 +Ve IN (analogue switch); 2 +Ve OUT (analogue switch); 3 Remote LED +Ve; 4 0V; 5 0V; 6 Screen; 7 Screen |
| Dimensions | 105mm Diameter x 48mm deep (detector only); 105mm diameter x 65mm deep (detector in base) |
| IP Rating | IP21C |
| Weight | 122g (not in base); 176g (in base) |
| Operating conditions/temperature | -10°C to +50°C. Max relative humidity: 95% (non condensing) |
| Notes | Requires a CA408 CAST base. CA408R relay base also available) |
