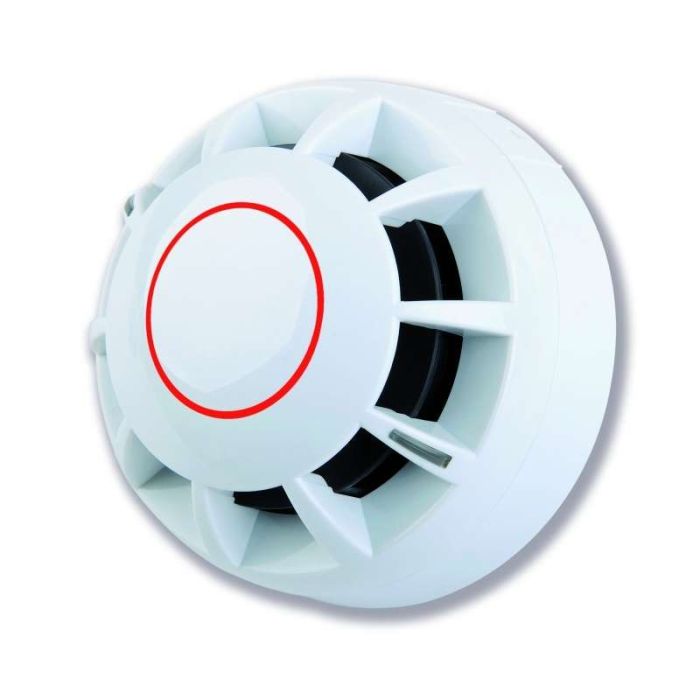

C-TEC CAST Programmable Heat Detector
CAST Programmable Addressable Heat Detector
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
A high quality programmable heat detector for use with C-TEC’s XFP & ZFP ‘CAST’ protocol Addressable Fire Panels.
Features
- LPCB certified to EN54 parts 5 & 17 and Kiwa Telefication & DBI certified to EN54-13.
- Also certified to the relevant parts of EN54 with Swedish certification body SBSC.
- Can be programmed to operate as a Class A1R (rate of rise), Class A2 (64ºC fixed temperature) or Class B (76ºC fixed temperature) heat detector. Default setting is A2.
- Onboard short circuit loop isolator.
- Includes two 8mm x 2mm ultra-bright red LED indicating strips.
- Different sensitivities can be selected for different times of the day (day/night, building occupied/unoccupied etc).
- 5mA typical alarm current (370uA typical quiescent) @ 22-40V DC.
- Programmable multi-function status LED.
- Compatible with C-TEC’s CA408 CAST base c/w integrated locking mechanism & ID tag.
| Approval | EN54-5, EN54-13, EN54-17 |
|---|---|
| Category Type | Detector |
| Colour | White |
| Detection | Heat |
| IP Rating | IP42 |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
| Approvals/Certifications | Certified by SBSC to the relevant parts of EN54, DBI certified to EN54-13, LPCB certified to EN54-5 & 17 and Kiwa Telefication certified to EN54-13 |
| Compatibility | C-TEC's XFP/ZFP CAST Protocol addressable fire panels |
| Type | Class A1R, Class A2 or Class B Heat (Programmable) |
| Application/Operation | Generates an alarm when a specific temperature is reached (Modes 1, 2 & 3). In Mode 1 also generates an alarm when a sudden rise in temp is detected |
| Sensitivity | Mode 1 (A1R): Rate of Rise and 56ºC fixed; Mode 2 (A2): 62ºC fixed; Mode 3 (B): 74ºC fixed. Selectable at the panel. |
| Supply Wiring | 2-wire, polarity sensitive |
| Supply/operating voltage | 22V to 40V DC |
| Quiescent current | 370uA typical @22 to 40V DC |
| Alarm current | 5mA typical (LEDs illuminated) @ 22 to 40V DC |
| Indicators | 2 LED indicator strips, emitting red light when in alarm offering 360° visibility. Optional remote LED |
| Connections | Via CA408 base: 1 +Ve IN (analogue switch); 2 +Ve OUT (analogue switch); 3 Remote LED +Ve; 4 0V; 5 0V; 6 Screen; 7 Screen |
| Dimensions | 102.2mm Diameter x 37mm deep (detector only); 102.2mm diameter x 57.5mm deep (detector in base) |
| Construction & Finish | White polycarbonate casing rated to UL94 V-2 with nylon parts |
| IP Rating | IP42 |
| Weight | 99g (not in base); 154g (in base) |
| Operating conditions/temperature | -20°C to +85°C. |
| Notes | Requires a CA408 CAST base. CA408R relay base also available) |
