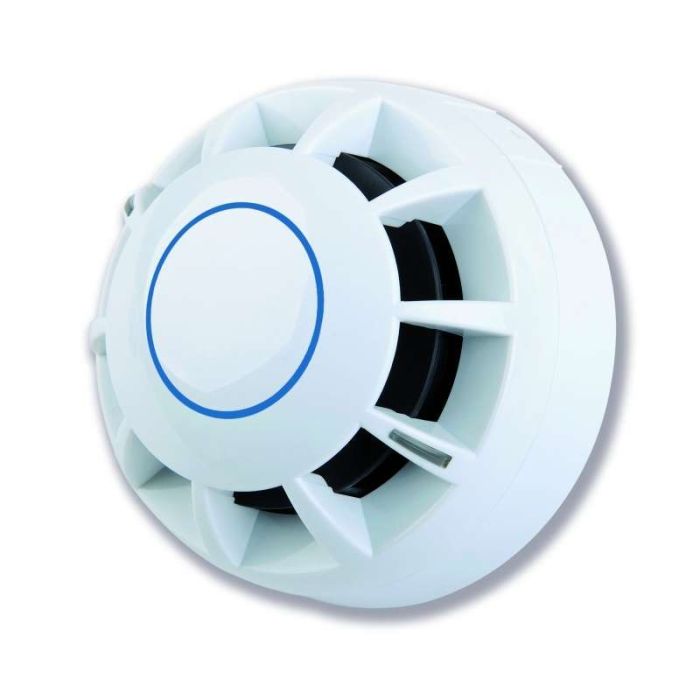

C-TEC CAST Programmable Multi-Sensor Fire Detector
CAST Programmable Addressable Multi-Sensor Fire Detector
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
A high-quality programmable multi-sensor fire detector for use with C-TEC’s XFP & ZFP ‘CAST’ protocol Addressable Fire Panels.
Features
- LPCB certified to EN54-5, 7 & 17 and CEA 4021. Also Kiwa Telefication & DBI certified to EN54-13.
- Also certified to the relevant parts of EN54 with Swedish certification body SBSC.
- Onboard programmable heat & smoke sensors make it deal for detecting a wide range of fires whilst also reducing false alarms.
- Multiple sensitivity/sensor settings.
- Smart algorithms help reduce false alarms.
- Drift compensation functionality.
- Short circuit loop isolator.
- Includes two 8mm x 2mm ultra-bright red LED indicating strips.
- Different sensitivities can be selected for different times of the day (day/night, building occupied/unoccupied etc).
- 5mA typical alarm current (370uA typical quiescent current) @ 22-40V DC.
- Programmable multi-function status LED.
- Compatible with C-TEC’s CA408 CAST base c/w integrated locking mechanism & ID tag
| Approval | EN54-5, EN54-7, EN54-13, EN54-17 |
|---|---|
| Category Type | Detector |
| Colour | White |
| Detection | Multisensor |
| IP Rating | IP42 |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
| Approvals/Certifications | Certified by SBSC to the relevant parts of EN54, DBI certified to EN54-13, LPCB certified to EN54-5, 7 & 17 and CEA 4021. Kiwa Telefication certified to EN54-13 |
| Compatibility | C-TEC's XFP/ZFP CAST Protocol addressable fire panels |
| Type | Multi-Sensor |
| Application/Operation | The CA414 multi-sensor has been designed to offer improved detection and reduced incidences of false alarms, As well as operating independently, the smoke & heat sensors combine to give a sensitive response to free burning fires (when a rise in heat is detected, its sensitivity to smoke is increased). |
| Sensitivity | Mode 1: High Optical + A2 Heat ; Mode 2: Standard Optical; Mode 3: Standard Optical +A2 Heat; Mode 4: Low Optical + A2 Heat; Mode 5: Class A1R Heat. |
| Supply Wiring | 2-wire, polarity sensitive |
| Supply/operating voltage | 22V to 40V DC |
| Quiescent current | 370uA typical @22 to 40V DC |
| Alarm current | 5mA typical (LEDs illuminated) @ 22 to 40V DC |
| Indicators | 2 LED indicator strips, emitting red light when in alarm offering 360° visibility. Optional remote LED |
| Connections | Via CA408 base: 1 +Ve IN (analogue switch); 2 +Ve OUT (analogue switch); 3 Remote LED +Ve; 4 0V; 5 0V; 6 Screen; 7 Screen |
| Dimensions | 102.2mm Diameter x 37mm deep (detector only); 102.2mm diameter x 57.5mm deep (detector in base) |
| IP Rating | IP42 |
| Weight | 99g (not in base); 154g (in base) |
| Operating conditions/temperature | -20°C to +85°C. |
| Notes | Requires a CA408 CAST base. CA408R relay base also available) |
