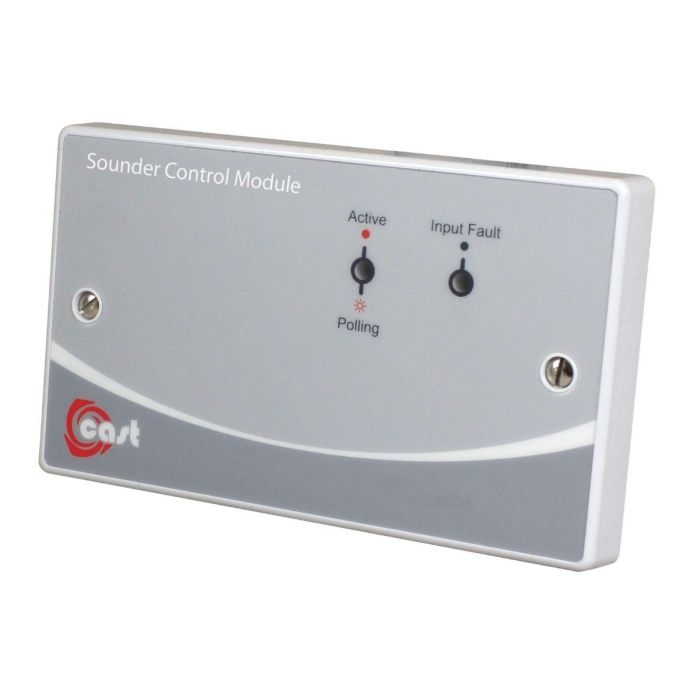

C-TEC CAST Sounder Control Module
CAST Addressable Sounder Control Module
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Allows a zone/circuit of conventional fire alarm sounders to be connected to a CAST protocol fire alarm system.
Features
- Onboard short circuit loop isolator.
- Conventional sounder circuit is continually monitored for open and short circuit faults.
- 3mA typical alarm current (530uA typical quiescent current) @ 22-40V DC.
- Can provide up to 50mA output current (taken from the CAST addressable loop).
- Polling, sounder circuit active and sounder circuit fault indicators.
| Category Type | Interface |
|---|---|
| Colour | Grey |
| Interface Type | Sounder Controller |
| IP Rating | IP40 |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
| Compatibility | C-TEC's XFP/ZFP CAST Protocol addressable fire panels |
| Application/Operation | Allows a zone/circuit of conventional fire alarm sounders and visual alarm devices to be connected to a CAST compatible fire alarm system |
| Supply/operating voltage | 22V to 40V DC |
| Quiescent current | 530uA typical |
| Zone current | Can provide up to 50mA (taken from the CAST addressable loop |
| Alarm Current | 3mA @ 22-40V DC |
| Indicators | Polling, sounder circuit active and sounder circuit fault indicators |
| Dimensions | 147 W x 87 H x 22 D. Can be mounted on a standard 25mm UK flush or surface double gang back box |
| IP Rating | IP40 when correctly installed |
| Weight | 122g |
