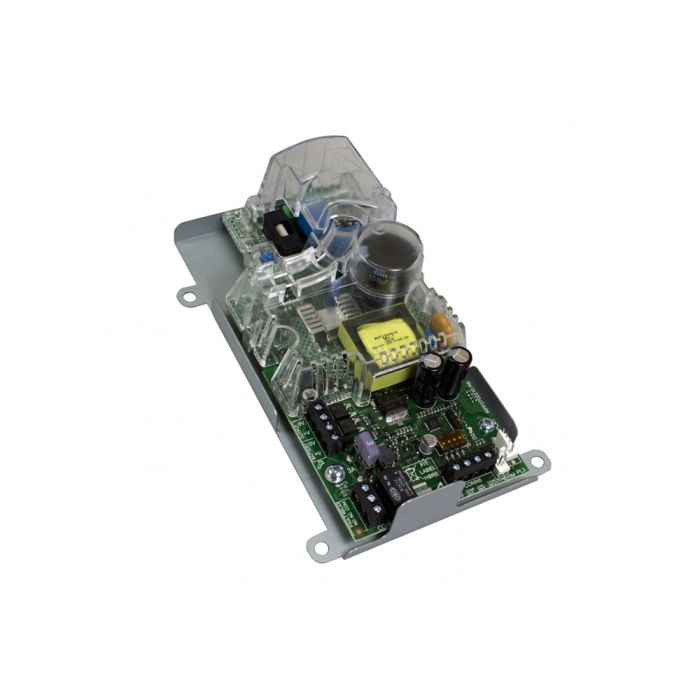

C-TEC EN54-4 24Vdc 3A Caged Power Supply Only
24V 3A Encased Switch Mode Power Supply Unit to EN54-4/A2
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
- Supplied in a finger-protective cage to VDE 0100-410.
- Includes the same electronics as our BF362-3 VDS certified EN54-4/A2 boxed 24V 3A PSU.
- Ideal for use in OEM enclosures for powering beam detectors, auto-dial communicators, aspirating smoke detectors, auto-open vent systems, auxiliary sounder systems or any other device performing a mandatory function of a fire alarm system.
- Deep discharge battery protection and EN54 compliant reporting of battery impedance faults.
- Includes a single-pole volt-free changeover relay that switches for any fault condition.
- Three LED indicators - supply present, general fault and auxiliary fault (for optional connection to third-party equipment).
- Link selectable battery charging capacity.
- Environmentally-friendly charging circuit - dissipates just 0.35W compared to the industry norm of 2.55W.
- Supplied in a tough, durable metal box.
- Optional 'PCB-only' versions available (order code BF362-3/C).
A powerful switch mode/digital hybrid PSU that can be customised to suit your exact requirements
Features
- Plastic cover on PSU PCB guards against touching live parts (to VDE 0100-410).
- Includes the same electronics as the BF562-3 LPCB/VDS certified EN54-4/A2 boxed 24V 3A PSU.
- Metal base plate facilitates straightforward mounting inside third-party OEM enclosures.
- Includes a single-pole volt-free changeover relay that switches for any fault condition.
- Includes a fault type & hazardous voltages present LED.
- Two selectable battery charge currents.
- Battery fault impedance limits can be optimised to suit load current (helps extend battery life)*.
- Mains fail simulation mode.
- Improved on-board temperature sensor with optional remote sensor.
- Electronic functions comply with EN50131-6 grades 1-4 for security applications.
| Amp | 3 |
|---|---|
| Category Type | Power Supply Unit |
| Clearance | No |
Write Your Own Review
PSU CUSTOMISATION
The BF562-3/E can be optionally customised to suit your exact requirements using a BF423 configurator and PC. Configurable parameters include Float voltage temperature compensation; Battery charge rate (mA); Battery impedance; Input/Output settings.
PSU STATUS LED (located on the PSU PCB)
1 flash = Mains Failure.
2 flashes = Battery Voltage Low.
3 flashes = Battery Voltage Critical.
4 flashes = Charger Failure.
5 flashes = Charger OK (Battery is either actively charging, or in float charge).
6 flashes = No Batteries Fitted (indicating DIP Switch 4 position).
7 flashes = Battery Resistance Fault (Level set by DIP Switch 2 position).
8 flashes = Output Over Voltage.
BATTERY FAULT MONITORING
The BF562-3/E monitors battery resistance to the requirements of EN54-4/A2. The fault threshold is directly related to the ability of the battery to deliver the rated current to the load. For example, batteries stored uncharged for long periods, during shipment and/or distribution, degrade leading to increased internal resistance. If a degraded battery is fitted, a fault will be shown by the PSU as mandated by EN54-4/A2.
DATA PORT
Data on the BF563-3/E’s status can be extracted from the PSU’s bi-directional data port. The data available includes thermistor measurements; battery terminal voltage; system voltage at load terminals; battery charge current; load current; battery impedance and ASCII text string status messages. Extracting this data requires additional equipment and permissions
| Approvals/Certifications | Includes the same electronics as the EN54-4/A2 certified BF562-3 PSU |
| Compatability | *Full compliance with all relevant standards must be checked by the responsible person with the caged PSU installed in a suitable enclosure* |
| Application/operation | An encased Mains to regulated DC switch-mode/digital hybrid power supply providing 3A @ 24V DC. It includes a single pole volt-free changeover relay that switches for any fault condition. |
| Mains Supply | 230V 50/60Hz |
| Mains rated current | 800mA r.m.s |
| Total output current limited to | 3A (max output current) |
| Output | I max.a: 2.6A or 2A selectable. A load greater than I max.a will temporarily reduce batt. charging. I.max.b: 3A, charging turned off via CONN6. Output is also customisable via a BF423 Configurator* |
| Battery charge capacity | 2.5Ah up to 17Ah (battery charged to 80% capacity in 24hrs). Output is customisable via a BF423 Configurator to suit different manufacturers' batteries*. |
| Max battery size and type | Up to 17Ah VRLA dependent on the size of the enclosure the BF562-3/E is mounted in. |
| Indicators | Supply Present (green); General Fault (amber); Auxiliary Fault (amber); Hazardous Voltages Present (red). |
| Connections | Mains Input (CONN1); Supply Output (CONN3); Battery Input (CONN3); Fault Relay (CONN4); Charge Off Input (CONN5). Battery Charge Current Link (PLK1); Battery Monitoring On/Off Link (PLK2) |
| Expansion connections | A remote thermistor can be connected via PL3 terminals |
| Product dimensions (mm) | 143 W x 173 H x 66 D |
| Construction & finish | Zintec base, polycarbonate cover |
| IP Rating | Dependent on mounting enclosure |
| Weight | 665g (without batteries) |
| Operating conditions/temperature | -5°C to +40°C. Max relative humidity: 95% |
| Notes | *Parameters configurable via a BF423 configurator are: Float voltage temp. compensation; Batt. charge rate (mA); Batt. impedance; Configurable Input/Output settings |
