In stock
Product Code
EN16005-KIT-UD
SKU
CD0759KITD

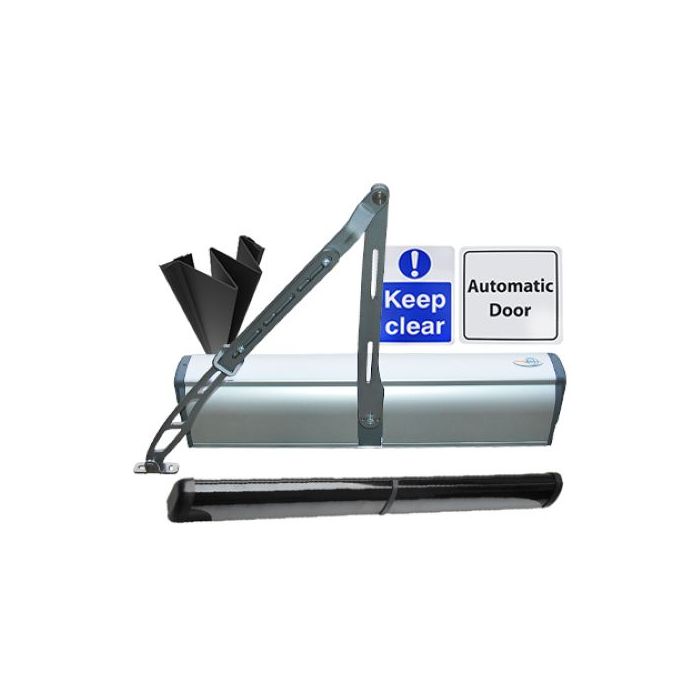

CDVI Digiway Plus EN16005 kit for double doors
EN16005 kit for double doors - Digiway Plus
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
The EN16005-KIT-U by CDVI helps you meet the regulatory requirements of the EN16005 standard, with safety sensors, signage, and finger-guards.
Safety is essential to protect people from physical harm when they approach automated doors. This complete kit for single doors helps you meet the regulatory requirements of the EN16005 standard, with safety sensors, signage, and finger-guards. DIGIWAY Plus is ideal for lower traffic installations such as private residential use.
EN16005-KIT-U : Why to choose this product
- Door automation kit to comply with EN16005 regulations
- Includes DIGIWAY Plus door operator for single door
- Universal arm for inward or outward opening
- Kit includes: 2x DWPS102U door operator, 4x DWSSS-5M1 infrared sensors, 2x DWS-FGW or DWS-FGB finger-guard, 4x DWS-KCSIGN safety sign, 4x DWS-ADSIGN safety sign
| Colour | Steel |
|---|---|
| IP Rating | IP40 |
| Clearance | No |
Write Your Own Review
Technical Specifications
| Number Of Relays | 1 x NO/NC |
| Mounting |
Surface |
|
Min Temperature (°C)
|
-10 Degreees |
|
Max Temperature (°C)
|
+55 Degerees |
| Frequency |
433.92MHz |
| Encoding | KeeLoq® hopping code |
| Memory | 1 master transmitter, 49 operating transmitters |
Electrical Specifications
|
Min. Voltage (V)
|
230 |
|
Max Voltage (V)
|
230 Vac |
|
Voltage AC/DC
|
AC |
|
Contact Rating
|
10A @ 12Vdc (locking output) |
|
Battery Included
|
12Vdc, 1.3AH |
Certifications
| IP Rating | IP40 |
Appearance
|
Surface Material
|
Aluminium cover |
| Colour |
Metallic |
Dimensions
| Product Height (mm) | 511mm |
|
Product Width (mm)
|
90mm |
|
Product Depth (mm)
|
110mm |
|
Product Weight (kg)
|
5.9kg |
