Product Code
CFP762
SKU
CT8301

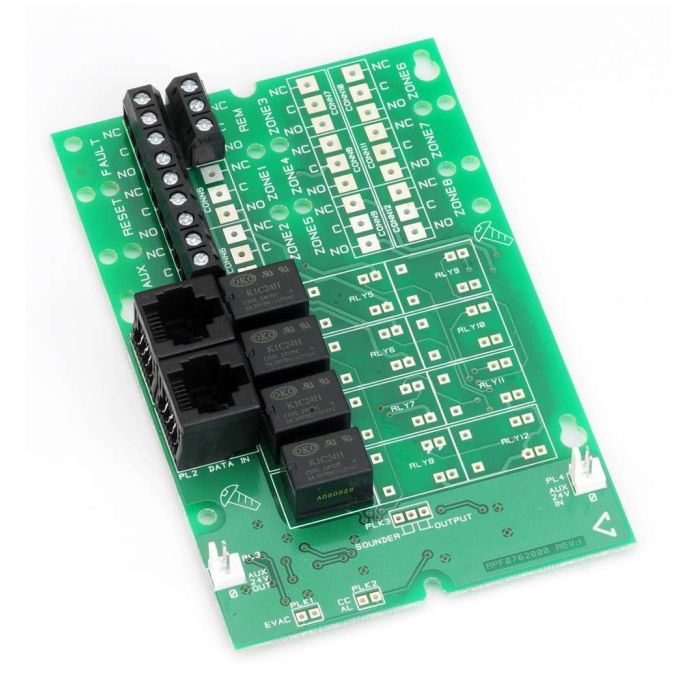

CFP Relay Output Card (Reset, Fault, Aux. & Remote Relay Outputs)
Relay Output Card, Reset, Falut, Aux. & Remote Relay Outputs
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
An optional system expansion device for use with CFP Standard 2-8 Zone Fire Panels or CFP AlarmSense 2-8 Zone Fire Panels.
Features
- Provides four panel-controlled volt free relay outputs (reset, fault, aux. fire and remote).
- PCB mounts inside the CFP fire panel.
- Reset relay is active during the panel’s reset cycle.
- Fault relay is active in any fault condition. This relay is failsafe and normally energised – if power is removed from the panel the relay will changeover to produce a fault signal.
- Aux. fire relay is active in an alarm condition provided all relevant delays have expired.
- Remote relay is active during any Alarm Condition provided all relevant delays have expired.
- Outputs are NOT designed to switch mains voltages.
| Category Type | Relay |
|---|---|
| Interface Type | Output |
| System Type | Conventional |
| Clearance | No |
Write Your Own Review
| Product dimensions (mm) | 82W x 125H x 23D |
| Weight | 64g |
| Properties | Single pole changeover contacts; Rated at 1A 50V; 50V Isolation between relays, contacts and CFP & relays; 27mA active relay coil current @ 27.6V supply |
