In stock
Product Code
503-005
SKU
CR1012
Cranford Controls Auxiliary Relay Unit, 12Vdc
Auxiliary Relay Unit 12Vdc
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
The R12 relay is intended to switch addtional field devices via the two relay outputs supplied. An LED is mounted so that it remains visible during the relay operation.
The supply voltage to the relay coil may be continued through the device via the additional terminals supplied. Each device is reverse polarity protected.
Auxiliary relay units provide two relay outputs to allow fire systems to switch field devices such as fire door retainers and smoke vents or to shutdown fans.

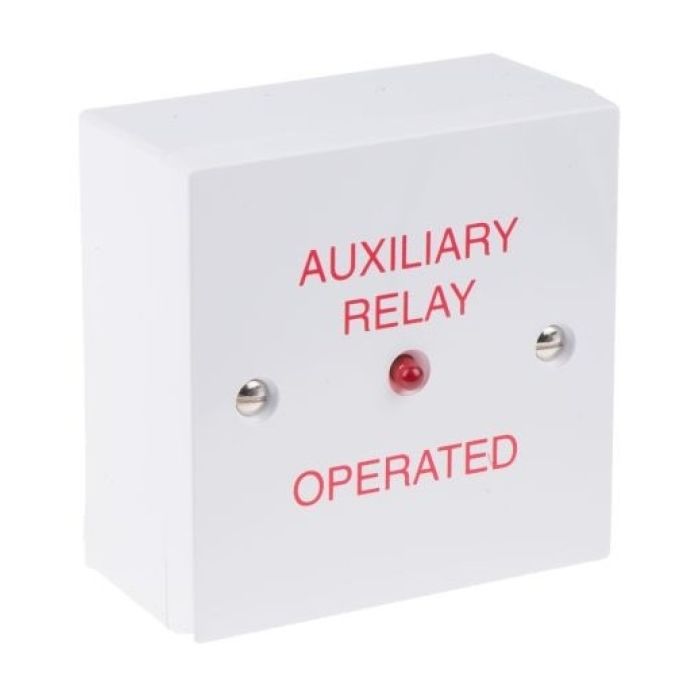

Indication of relay status is provided via an LED with a wide area of illumination and high on/off contrast. The standard version is a single gang unit with ‘Auxiliary Relay Operated’ text.
Features
- Available in 24V and 12V variants provide two relay outputs for switching field devices
- 230VAC 5A relay contact rating
- Supply voltage to the relay coil can be continued through the device using supplied terminals
- PCB only options can be mounted inside power supplies, panels, etc
| Category Type | Relay |
|---|---|
| Colour | White |
| IP Rating | IP43 |
| Clearance | No |
Write Your Own Review
| Part No. | 503-005 |
| Audible Signal | None |
| Visual Signal | None |
| Voltage (VDC) | 9-18 |
| Text | N/A |
| Mounting | PCB Only |
| Ingress Protection | N/A |
| Colour (body) | N/A |
| Material | N/A |
| Weight (kg) | 0.051 |
