In stock
Product Code
503-001
SKU
CR1001TS

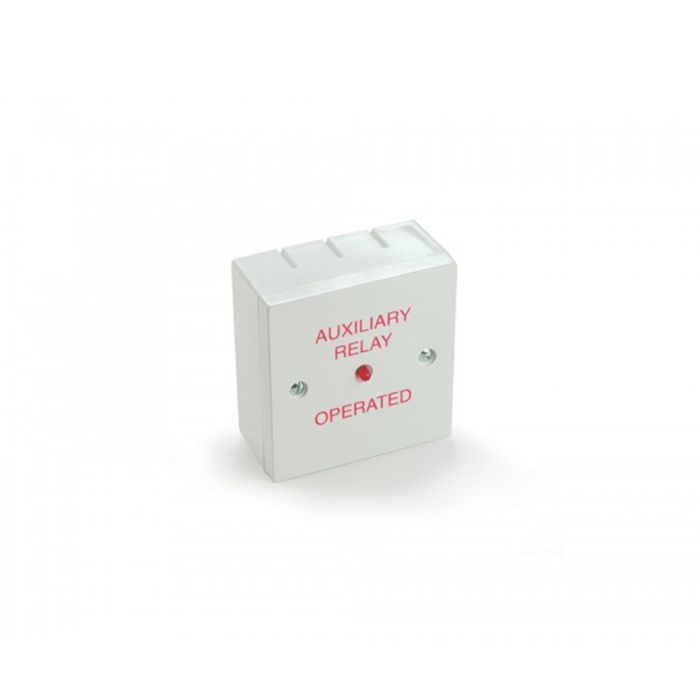

Cranford Controls Boxed Auxiliary Relay Unit 24Vdc
Boxed Auxiliary Relay Unit 24Vdc
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
The relay is intended to switch additional field devices via the two relay outputs suplied. An LED is mounted so that it remains visible during the relay operation. The supply voltage to the relay coil may be continued through the deive via the additional terminals supplied. Each device is reverse polarity protected.
Typical usage examples are; automatic door retainers, smoke vents and fan shutdown, which are intended to be operated by an automatic fire system.
Auxiliary relay units provide two relay outputs to allow fire systems to switch field devices such as fire door retainers and smoke vents or to shutdown fans.
Indication of relay status is provided via an LED with a wide area of illumination and high on/off contrast. The standard version is a single gang unit with ‘Auxiliary Relay Operated’ text.
Features
- Available in 24V and 12V variants provide two relay outputs for switching field devices
- 230VAC 5A relay contact rating
- Supply voltage to the relay coil can be continued through the device using supplied terminals
- PCB only options can be mounted inside power supplier, panels, etc
| Category Type | Relay |
|---|---|
| Colour | White |
| IP Rating | IP43 |
| Clearance | No |
Write Your Own Review
| Part No | 503-001 |
| Audible Signal | None |
| Visual Signal | Red LED |
| Voltage (VDC) | 18-40 |
| Text | "Auxiliary Relay Operated" |
| Mounting | Surface |
| Ingress Protection | IP43 |
| Colour (body) | White |
| Material | ABS |
| Weight ((kg) | 0.15 |
