In stock
Product Code
511-097L
SKU
CR9020DRR

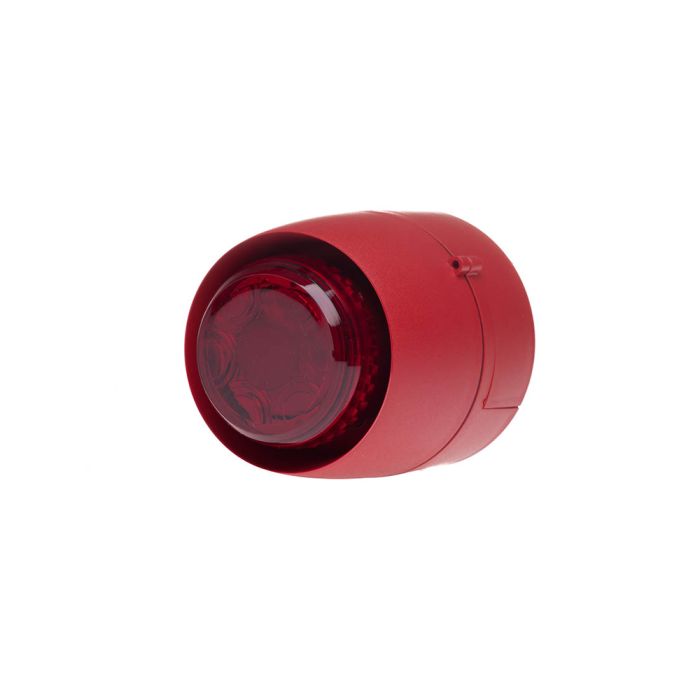

Cranford Controls VTB 32E Spatial Sounder Beacon Deep Red Base, Red Lens
Conventional VTB 32E Spatial Sounder & Visual Indicating Device, Deep Base, Red Base, Red Lens
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
The VTB 24Vdc sounder beacon is part of the VTG family of products designed for use with conventional fire alarm systems including two wire (SAV-WIRE®) and other general 24Vdc applications. The sounder function, like all VTG products, comes as standard with 32 tones. The beacon function has been designed for maximum all-round visibility, coupled with low power consumption utilising an array of energy efficient LEDs. The sounder function features a two-stage alarm override which is activated by a third negative wire from the fire panel. Both the sounder and beacon functions are fully synchronised. The product can also be used as a beacon only which is easily selected by a DIL switch at the time of installation.
The VTB family of sounder/beacons offer two fully synchronised functions in one device that can be used without the sounder function.
The low current consumption allows installers to use a larger number of visual devices without the need for additional power supplies.
Designed for use in conventional and two wire (SAV-WIRE) fire alarm systems. Available in white or red body colour alongside a range of lens colours.
Features
- One devices with EN54-3 approved sounder funciton and energy efficient visual indication
- Provides the widest range of sounder output adjustments on the market
- Shallow base IP21C for indoor applications
- Deep base IP33C & IP65 for surface wiring and outdoor applications
- 230VAC mains base available as accessory
| Base | Deep |
|---|---|
| Category Type | Sounder Visual Indicator Device |
| System Type | Conventional |
| Clearance | No |
Write Your Own Review
| Part No. | 511-097L |
| Audible Signal | Siren |
| Visual Signal | Red LED |
| Voltage (VDC) | 21.6-28 |
| Base | Deep |
| Mounting | Wall or Ceiling |
| Ingress Protection | IP33C & IP65 |
| Temp Range (°C) | -20 to +70 |
| Colour (body) | Red |
| Material | ABS |
| Weight (kg) | 0.25 |
