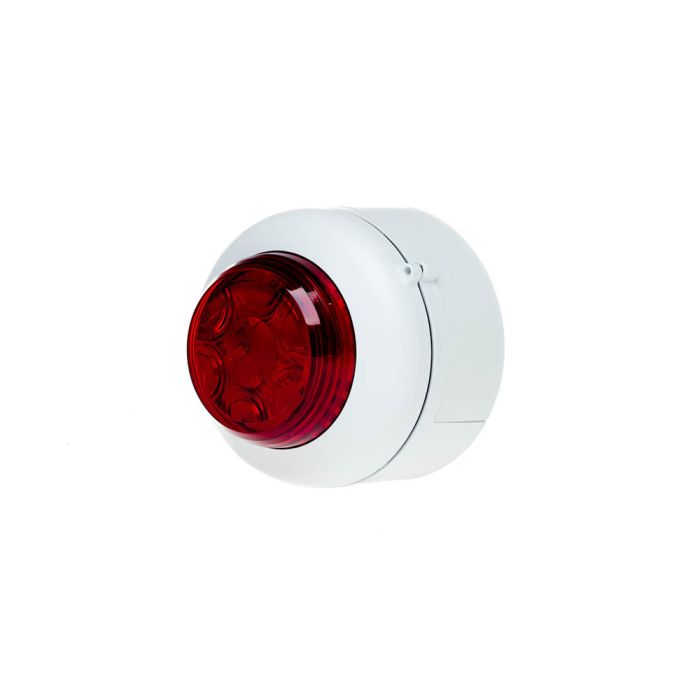

The Cranford Controls VXB-DB-WB/RL LED Beacon is a flashing visual indicator designed for use with conventional fire alarm systems, including compatible two-wire systems, and other general 24V DC applications. Featuring a white body, red lens, and IP65-rated deep base, it provides a highly visible alarm indication while offering enhanced protection against dust and water ingress.

Part of the Cranford Controls VXB Series, this energy-efficient LED beacon has been developed with low power consumption in mind, helping to reduce system loading and minimise the need for additional power supplies when multiple visual devices are installed. It incorporates a unique dual-power wiring configuration, allowing operation at either 5mA (standard) or 3mA (low-power) current consumption.

Installation is quick and straightforward thanks to the 6-way 45° terminal block and bayonet-style fixing arrangement with locking feature. Designed for surface mounting, the VXB-DB-WB/RL delivers reliable visual warning performance in both indoor and outdoor applications where an IP65-rated enclosure is required.

Key Features

• Cranford Controls VXB Series LED beacon

• Part Number: VXB-DB-WB/RL (Cranford Controls 512-004)

• White body with red lens

• Deep base configuration

• Flashing red LED beacon

• Designed for 24V DC fire alarm systems

• Operating voltage: 20-35V DC

• Low current consumption: 5mA standard / 3mA low-power setting

• IP65 protection rating

• Surface mounting

• 93mm base diameter

• 77mm height

• Operating temperature:-20°C to +70°C

• Suitable for conventional fire alarm systems and compatible two-wire systems

• Quick-fit bayonet fixing with locking feature

• Energy-efficient LED technology for maximum all-round visibility
