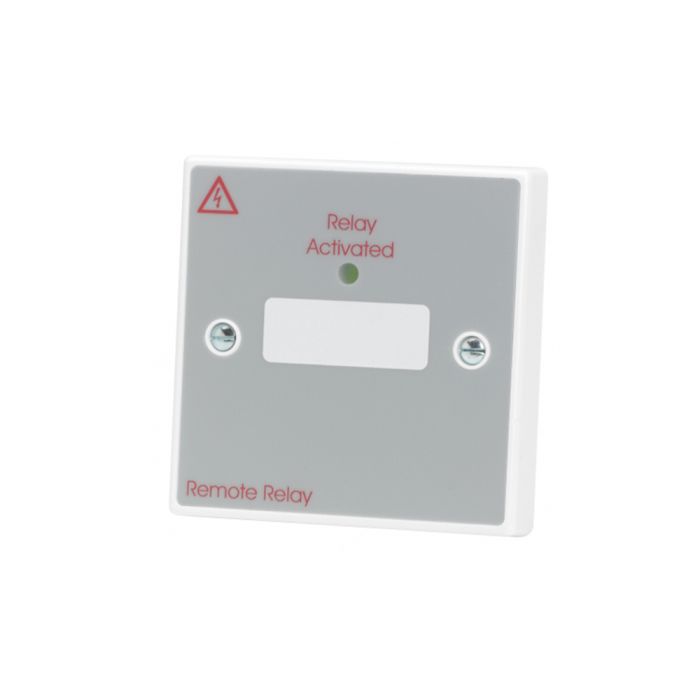

CTEC 24V 5A Relay on a Plate
24V 5A Relay on a Plate
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
A general purpose, double pole, polarised 24V 5A relay desinged for use with 24V fire alarm systems. The LED illuminates when the relay is active, and is most commonly used to operate door retaining magnets, rollershutter doors.
A general purpose, double-pole, polarised 24V 5A relay designed for use in 24V fire alarm systems.
Features
- Incorporates a high intensity LED which illuminates red when the relay is active.
- Can be connected to a suitable control panel relay output or a standard polarised fire alarm sounder circuit to operate door retaining magnets, rollershutter doors, etc.
- Can be mounted on 25mm flush or surface mount back boxes.
| Category Type | Relay |
|---|---|
| Colour | White |
| IP Rating | IP40 |
| Clearance | No |
Write Your Own Review
| Activation Current | Typically 30mA @ 24VDC |
| Indicators | Red Relay Activated LED |
| Connections | +V; -V (Supply); NC; C; NO (SW1 & SW2). Contact rating @ 24VDC is 5A (resistive) 2A (inductive); Contact rating @ 240VAC is 5A (resistive) 2A (inductive) |
| Product dimensions (mm) | 85 W x 85 H x 27 D (Can be mounted on a standard UK 25mm single gang flush or surface back box) |
| Construction & finish | White PVC plate; Light grey label; Silver nickel contacts |
| IP rating | IP40 |
| Weight | 78g |
| Operating conditions/temperature | -10°C to +60°C |
