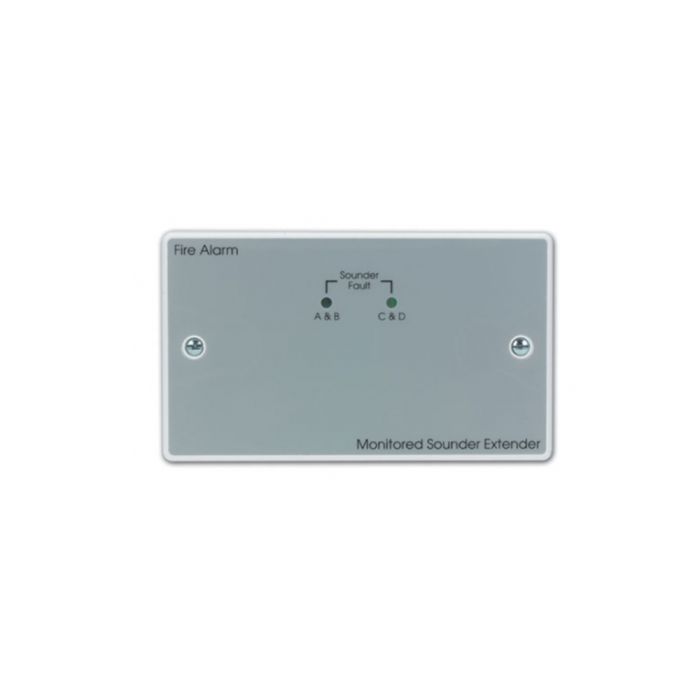

CTEC 4 Zone Sounder Circuit Extender Kit
4 Zone Sounder Circuit Extender Kit
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
- Provides four extra conventional sounder circuits with open and short circuit fault monitoring
- Compatible with most manufacturers' fire alarm control panels
- Supplied on a double gang plate
- Basic connection requires four wires: 24Vdc, 0v, Sounder -Ve & Sounder +Ve
- Sounder -Ve & Sounder +Ve can be connected at the host panel or any conenient point on a sounder circuit (Do Not Spur) 24Vdc and 0V can be derived from the host panel, or an external PSU
- If connecting the FF502P to a C-TEC fire panel only three input control wires are required ( Sounder -Ve is not required as CTEC conventional panels have a common 0V rail)
Provides four extra conventional sounder circuits with open and short circuit fault monitoring.
Features
- Compatible with most manufacturers’ fire alarm control panels.
- Supplied on a double gang plate.
- Basic connection requires four wires: 24 VDC, 0V, Sounder –Ve & Sounder +Ve.
- Sounder -Ve & Sounder +Ve can be connected at the host panel or any convenient point on a sounder circuit (DO NOT SPUR). 24 VDC and 0V can be derived from the host panel or, alternatively, from an external PSU.
- If connecting the FF502P to a C-TEC fire panel only three input control wires are required (Sounder -Ve is not required as CTEC conventional panels have a common 0V rail).
- Fits on standard UK 25mm flush or surface mount back boxes
| Category Type | Sounder Extender |
|---|---|
| Colour | White |
| IP Rating | IP40 |
| Clearance | No |
Write Your Own Review
| Application/Operation | When the host sounder circuit is activated, the FF502P’s sounder circuits follow. If an open/short is detected on any extender circuit, the FF502P connects a 680Ω resistor across the host circuit |
| Supply/Operating voltage | 15-30 VDC |
| Quiescent current | Less than 5mA @ 27VDC (includes monitoring current) |
| No of conventional sounder circuits | 4 |
| EOL resistor value | 4 x 6k8 0.25W for sounder circuits A, B, C and D |
| Max sounder output current | 400mA max. current per circuit. Total output current to be no greater than 1A |
| Product Dimensions (mm) | 146W x 85H x 23 D. (Can be mounted on a standard UK 25mm double gang flush or surface back box) |
| Construction & finish | White PVC plate; Light grey label |
| IP rating | IP40 |
| Weight | 124g |
| Operating conditions/temperature | -10°C top +60°C |
| Notes | A/B and C/D trigger inputs pull down to 0V |
