In stock
Product Code
FC-555-001-V3
SKU
EM8704

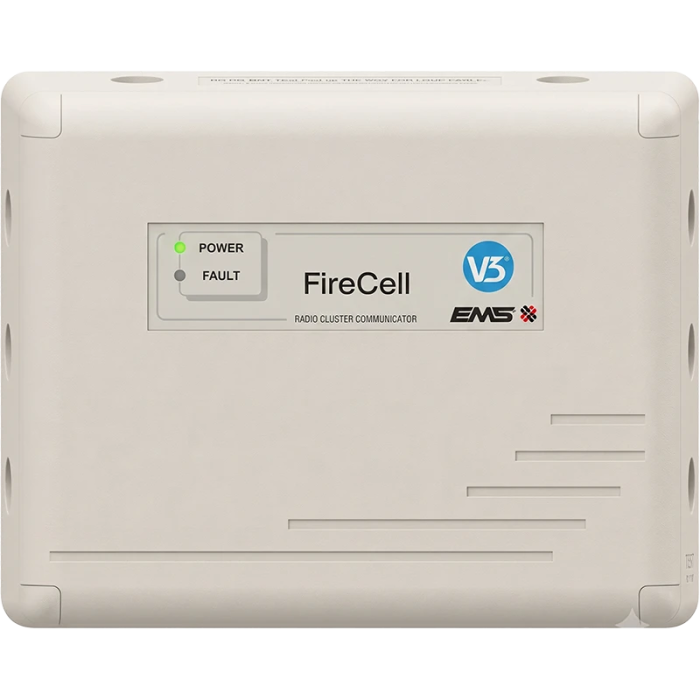

EMS FireCell Wireless Radio Cluster Communicator - 24V - V3
Wireless 24v Radio Cluster Communicator
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
FireCell 234V Wireless RCC - V3
Wireless radio cluster unit requires PSU.
The EMS FireCell FC-555-024-V3 Wireless 24VDC Radio Cluster Communicator (RCC) is a remote transceiver node which works within the FireCell wireless fire system.
The RCC accomodates up to 31 wireless FireCell devices, and can report directly to the Radio Hub or via other RCCs (up to four hops), for optimum exibility and maximum wireless coverage.
This device is third party EN certied, combining diversity aerial methodology, Smart Cluster Technology and 32 channel selection to produce fast and reliable wireless communication.
Key Features
- 24V DC operated
- Smart Cluster technology
- Up to 31 FireCell devices per RCC
- Dual band 868MHz operation
- Reports via other RCCs or directly to Radio Hub
- 32 radio channel selection
- EN54-18 & EN54-25 third party certified
| Approval | EN54-18, EN54-25 |
|---|---|
| Category Type | Communicator |
| Colour | White |
| IP Rating | IP54 |
| System Type | Wireless |
| Clearance | No |
Write Your Own Review
Specifications
| Dimensions |
W:270mm x H:205mm x D:75mm |
| Operating voltage | 17 - 28 VDC |
| Power requirements | 17mA @ 24 VDC |
| Operating frequency |
868 MHz |
| Output transmitter power |
Auto adjusting 0 to 14dBm (0 to 25mW) |
| IP Rating |
IP54, indoor use only |
| Operating temperature |
-10oC to +55oC |
| Storage temperature |
5oC to 30oC |
| Humidity |
0 - 95% non-condensing |
| Location | Type A : for indoor use |
| Weight | 1.15kg (excluding battery) |
| Certification (3rd party) | EN54-18 & EN54-25 |
