EMS FireCell Wireless Radio Cluster Communicator - 230V - V3 c/w with Remote Aerial Facility
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
FireCell 230V Wireless RCC with Aerial Facility - V3
Wireless radio cluster unit with PSU. Option for remote aerial to be installed

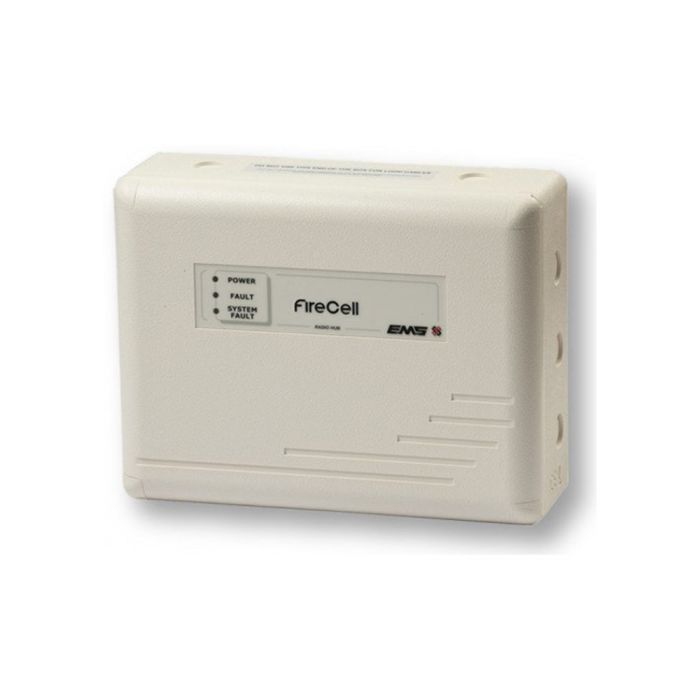

The EMS FireCell FC-555-331-V3 Wireless 230VAC Radio Cluster Communicator (RCC) is a remote transceiver node with a remote aerial facility which works within the FireCell wireless fire system.
The RCC accomodates up to 31 wireless FireCell devices, and can report directly to the Radio Hub or via other RCCs (up to four hops), for optimum exibility and maximum wireless coverage.
This device is third party EN certied, combining diversity aerial methodology, Smart Cluster Technology and 32 channel selection to produce fast and reliable wireless communication.
Key Features
- 230V AC operated
- Remote transceiver node
- With remote aerial facility
- 72 hr battery backup
- Smart Cluster technology
- Up to 31 FireCell devices per RCC
- Dual band 868MHz operation
- Reports via other RCCs or directly to Radio Hub
- 32 radio channel selection
- EN54-5, EN54-18 & EN54-25 third party certified
| Approval | EN54-5, EN54-18, EN54-25 |
|---|---|
| Category Type | Communicator |
| Colour | White |
| IP Rating | IP54 |
| System Type | Wireless |
| Clearance | No |
Specifications
| Dimensions |
W:270mm x H:205mm x D:75mm |
| Power requirements | Mains 220 - 240 VAC ~ 50Hz |
| Current consumption |
44mA (normal operation); 55.5 mA (with mains disconnected) |
| Operating frequency |
868 MHz |
| Output transmitter power |
Auto adjusting 0 to 14dBm (0 to 25mW) |
| IP Rating |
IP54, indoor use only |
| Operating temperature |
-10oC to +55oC |
| Storage temperature |
5oC to 30oC |
| Humidity |
0 - 95% non-condensing |
| Battery backup |
1 x 6V 4.5Ah Yuasa NP4.5-6 (sold separately) |
| Battery standby time |
72 hrs (typical 5 yr battery life, normal usage. If 72 hrs battery standby required, replace battery every 3 years |
| Location | Type A : for indoor use |
| Weight | 1.15kg (excluding battery) |
| Certification (3rd party) | EN54-5, EN54-18 & EN54-25 |
