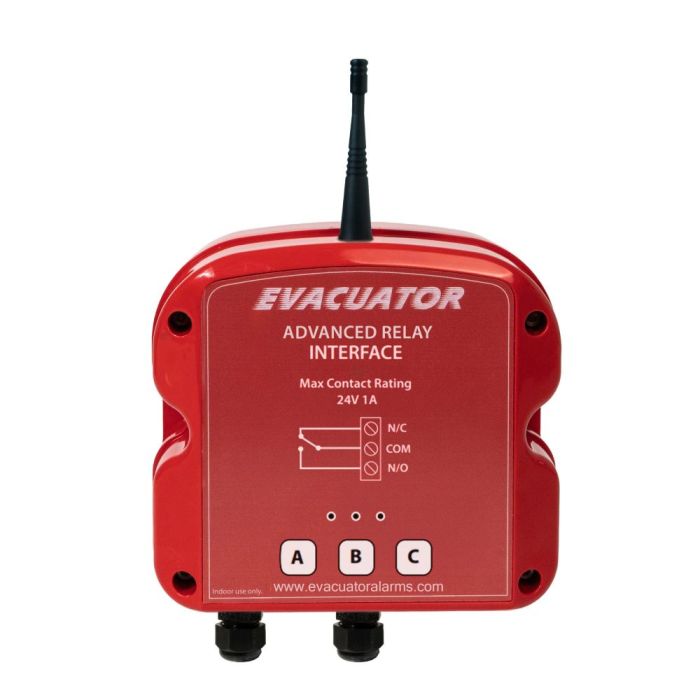

Synergy+ Advanced Relay Interface

Synergy+ Advanced Relay Interface – Integrated Wired & Wireless Alarm Control

The Synergy+ Advanced Relay Interface enables seamless integration between the Evacuator Synergy+ wireless system and fixed or third-party alarm systems. Operating on a secure 869MHz radio frequency, it allows alarms to communicate reliably across both wired and wireless environments. When an alarm activates, the interface closes a normally open volt-free contact. As a result, connected systems can receive a zero-volt input without requiring direct power transfer.

Two-Way System Interaction
Unlike a standard relay interface, this advanced unit supports two-way alarm control. Specifically, it accepts a volt-free input from a fixed alarm system, which then triggers the Synergy+ wireless system. Once the input is released, the Advanced Relay Interface sends a radio message to silence the connected Synergy+ devices. Consequently, users can silence both wired and wireless alarms from either system. Because of this functionality, the interface is commonly used where a temporary Synergy+ fire alarm system must connect to a fixed alarm installation. This ensures consistent alarm behaviour across the entire site.

Power Options & Wireless Reliability
The unit operates on a 4.5V battery, delivering up to three years of battery life, depending on usage. Alternatively, it can be powered by mains using the optional mains conversion kit, making it suitable for longer-term installations. Furthermore, mesh radio connectivity and a Category One radio module help maintain reliable communication across the system. An anti-tamper antenna, along with a status LED and battery low indication, also supports secure operation and routine maintenance.

Installation & Application Notes
For ease of installation, the enclosure includes two 16mm cable gland for secure cable entry. This design supports clean integration with fixed alarm wiring while maintaining system integrity.

Key Features

Up to 3 years battery life
Category One radio module
CE, UKCA, ROHS & EMC compliant
Battery low indication
Status LED indicator
Totally wire-free operation
Anti-tamper antenna
16mm gland for cable entry
Mesh radio connectivity
Radio frequency 869MHz
Used to trigger other alarm systems
Volt-free N/O & N/C contacts
