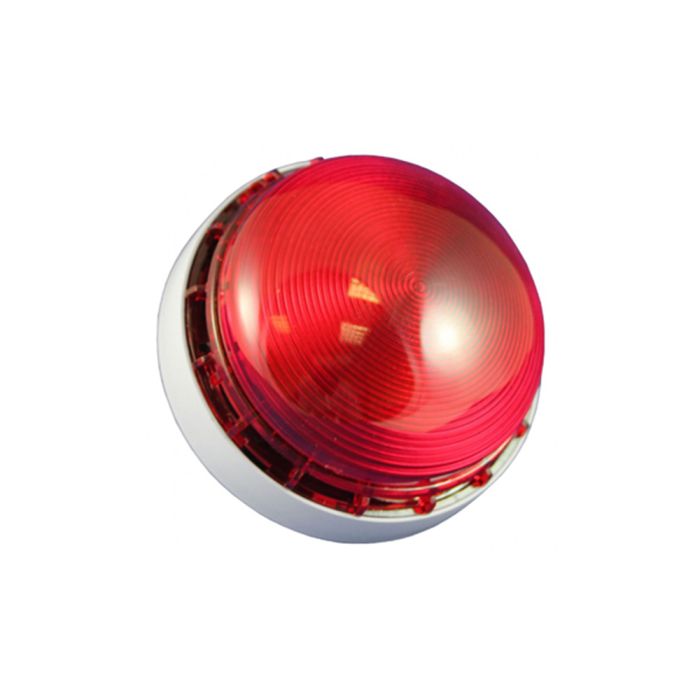

The Fike Twinflex Flashpoint Domed 302-0022 is a 2-wire fire alarm sounder and visual alarm indicator designed for use with Fike Twinflex fire alarm systems. The device combines an audible sounder with a visual LED flashpoint, providing both audible and visual indication when the fire alarm system enters an alarm condition.

The Twinflex Flashpoint Domed is powered directly from the 2-wire fire alarm zone and can be installed on the same zone as compatible Twinflex Multipoint detectors, sounders and other Twinflex devices. This makes the 302-0022 suitable for Twinflex installations where combined audible and visual alarm indication is required without the need for a separate power supply.

The domed Flashpoint provides a 90dB audible output and incorporates three selectable sound patterns. The visual flashpoint provides a synchronised flashing indication during an alarm condition, with the synchronisation reset at regular intervals to help maintain consistent operation across the system.

The Fike 302-0022 Twinflex Flashpoint Domed is supplied with its mounting base for straightforward installation. The unit features an anti-tamper mechanism, helping prevent unauthorised removal of the detector or sounder head without the appropriate removal tool.

The Flashpoint incorporates an End of Line (EOL) function, which can be configured using a DIL switch. Its 2-wire zone-powered design allows the device to form part of a Twinflex fire alarm zone while providing both sounder and visual alarm functions.

The Fike Twinflex Flashpoint Domed is identified by part number 302-0022 and is intended for use with compatible Twinflex 2-wire fire detection and alarm equipment. The device is listed as a Twinflex conventional Type A sounder/strobe (domed), with EN 54-3 certification applying to its sounder function. The strobe functionality is not included within the scope of that EN 54-3 approval.
