In stock
Product Code
843-4317
SKU
FC1510SS
FireCo DorMag SmartSound
DorMag SmartSound
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.

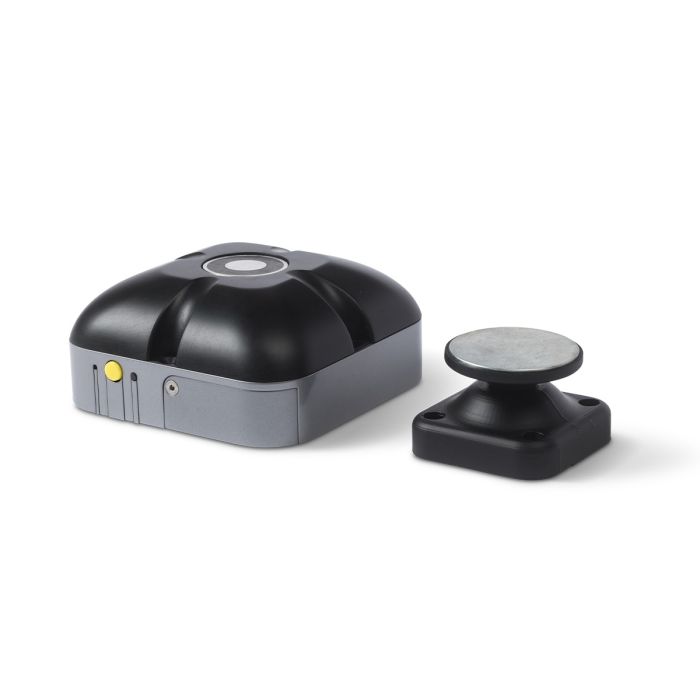

DorMag SmartSound is a wireless fire door magnet that provides a legal method for holding fire doors open. Upon activation of the fire alarm, it automatically releases, allowing the doors to close.
Utilising advanced sound recognition technology for superior accuracy, DorMag SmartSound is particularly suitable for areas with uneven floors and situations requiring a discreet hold-open option.
- Compact and discreet solution
- Battery powered
- Smooth and effortless operation
| Clearance | No |
|---|
Write Your Own Review
| Power | 4.5V Lithium Iron Disulfide (Li/FES2) battery pack |
| Colour | Black with silver band |
| Warranty | 2 Years |
| Casing | ABS / ABS+PC plastic |
| Weight | 0.52kg |
| Installation position (DorMag SmartSound) | On the wall adjacent to the door, with the DorMag SmartSound magnet fully centred with the keeper plate |
| Installation position (Door Keeper) | Anywhere on the back of the door |
| Maximum door to wall depth (when door is fully opened, adjacent to the wall) | 95mm (keeper chain or floor bracket required for greater distances) |
| Maximum door to wall angle (when door is fully opened, adjacent to the wall) | Plus or minus 25° from parallel |
| Minimum door to wall angle (when door is closed) | 65° |
| Hold open positions | Can hold the door open at any angle (dependant on add-ons, i.e. floor bracket & keeper chain) |
| Activation | SmartSound listening technology |
| Audible warning | Yes |
| Maximum door size | Power size 5 (max of 100kg and 1250mm width) |
| Fire rating | DorMag has been tested to EN1634-1 on FD30 doorsets, exposed and unexposed faces |
| Compliant to | EN1155:1997+A1:2002, EN1634-1:2008, EMC Directive, Radio Equipment Directive, UN 38.3 Lithium certification, CE Marked, UKCA Marked |
| Classification | Standard (Category B) installations under BS 7273-4:2015+A1:2021 |
