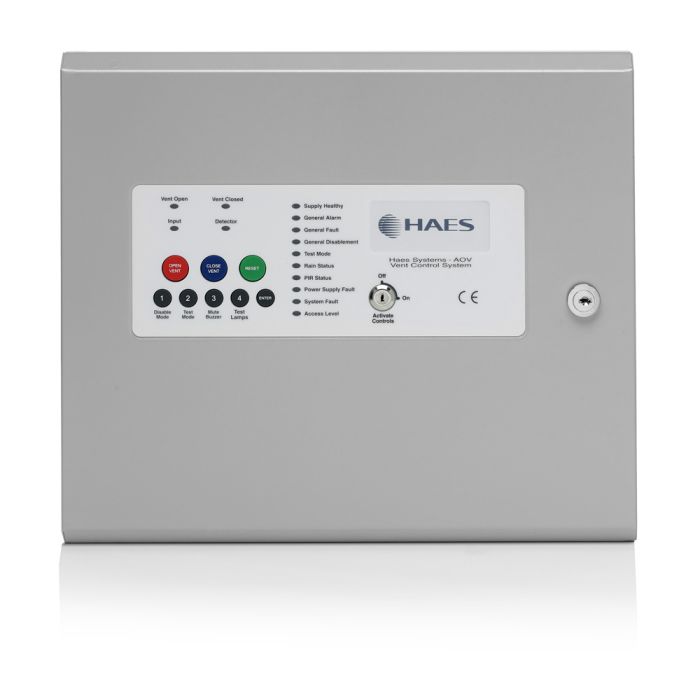

Haes 3A Single Zone AOV Control Panel
SZAOV control panel with 3 amp power supply unit. Non extendable
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
SZAOV control panel with 3 amp integral power supply. Single detection zone, non extendable. This purpose designed single detection zone automatic opening vent control panel has been developed to provide a comprehensive and flexible solution to smoke vent control scenarios and is suitable for use with vents, windows and roof lights.
SZAOV control panel with 3 amp integral power supply. Single detection zone, non extendable. This purpose designed single detection zone automatic opening vent control panel has been developed to provide a comprehensive and flexible solution to smoke vent control scenarios and is suitable for use with vents, windows and roof lights.
- 3 amp integral PSU
- Easy to program
- Single detection zone,
- Conventional or Twin-wire
- Input from other detection systems, to activate
- Monitored Actuator output for controlling smoke vents
- Fireman switch input to override all other inputs
- All inputs and actuator outputs monitored for Short and Open Circuit
- Thermostat input - Ventilation mode. Vents openable in 10% steps
| Amp | 3 |
|---|---|
| Category Type | Panel |
| Colour | Grey |
| IP Rating | IP30 |
| System Type | Conventional |
| Clearance | No |
Write Your Own Review
Enclosure
Cable Entry
Dimensions
Mains Supply
Battery Capacity
Detection Zones
Twin Wire
On Board Relays
Fireman's Switch Input
Vent Control Input
Actuator Output
ACT Spec
Inrush Current
Aux Output
False Alarm Management
1.2mm Mild Steel IP30. Colour ref: MW334E Interpon powder coat
Via 20mm knockouts located in the top and rear of the cabinet
Back Box: 310mm W x 300mm H x 80mm D, Lid: 317mm W x 309mm H x 25mm D
3A Internal switch mode power supply, Nom 27v DC
Single monitored detection zone. EOL 6K8
Selectable in panel (enables AV devices to be connected to det cct)
1 x Alarm, 1 x Fault, volt free changeover, Max 3A
Firemans control switch input for Open/Close/Auto
Vent control switch input, Open/Close (rocker switch)
Reversal actuator control output (2.5A total max) can be configured as a maintained output for a magnetic door
Monitoring current limit 1.5mA O/C > 10K S/C < 10R
20A for an interval of 2 seconds
28V, 2.5A. The Aux output should not be used to control sounders
Type A
