In stock
Product Code
ASP-12
SKU
HA8112

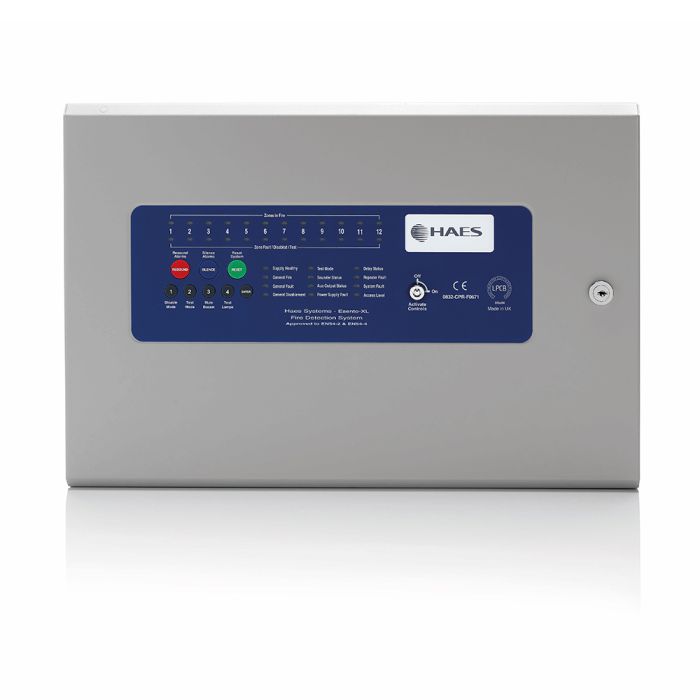

Haes Alarmsense 12 Zone Panel
12 Zone Alarmsense panel
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
12 zone fire alarm control panel for use with the Apollo Fire Detector's 'AlarmSense' range of 2 wire devices. Suitable for fully functional repeater panel
12 zone fire alarm control panel for use with the Apollo Fire Detector's 'AlarmSense' range of 2 wire devices. Suitable for fully functional repeater panel.
- 12 x AlarmSense zones
- Compatible with Apollo AlarmSense range of devices
- Activate controls via key switch or code entry
- Integral detector removal monitoring
- 3 Amp switch mode power supply Nom 27V DC
- 2 x conventional monitored sounder outputs
- 2 Aux C/O relays (1 x Fire) (1 x Fault). voltage free
- Class change I/P
- Alert I/P
- Fire & fault switched -ve outputs
- Test mode, with or without sounders
- Disable zones, sounder O/Ps, aux O/Ps & delays
- Conventional sounder circuits are fused @ 500mA with resettable fuses
- Fully functional repeater available
| Category Type | Panel |
|---|---|
| Colour | Grey |
| IP Rating | IP30 |
| System Type | Two Wire |
| Clearance | No |
Write Your Own Review
Enclosure
Cable Entry
Dimensions
Mains Supply
Battery Capacity
Detection Zones
Sounder Circuits
On Board Relays
Outputs
Switch Inputs
Event Log
Non Priority Alarm
Coincidence Alarm
1.2mm Mild Steel IP30 Colour Ref: MW334E Interpon powder coat
Via 20mm knockouts located in the top and rear of the cabinet
Back box: 450mm W x 300mm H x 85mm D, Lid: 460mm W x 310mm H x 25mm D
3A internal switch mode power supply, Nom 27VDC
12 x AlarmSense protocol EOL = 3K3R
2 x conventional monitored, fused @500ma EOL = 3K3R
1 x Fire, 1 x Fault, 3A 30V volt free changeover
1 x Fire, 1 x Fault 40mA switch -ve outputs
Class Change & alert (pulsing)
40 event history
Selectable per zone
Selectable per zone
