In stock
Product Code
ASP-R-12
SKU
HA8112R

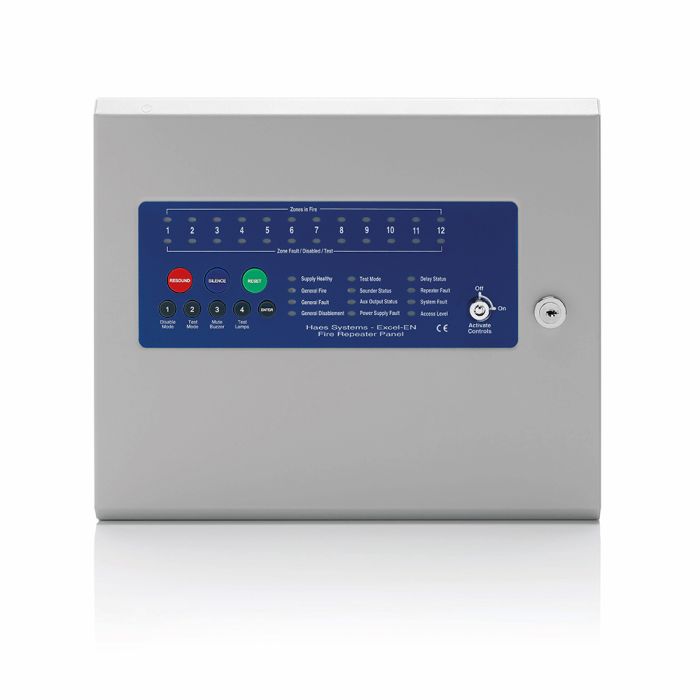

Haes Alarmsense Repeater Panel
12 Zone Alarmsense Repeater Panel
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
12 zone fully functional or passive fire alarm repeater panel suitable for the AlarmSense PLUS panel range (not suitable for ALS panels).
12 zone fully functional or passive fire alarm repeater panel suitable for the AlarmSense PLUS panel range (not suitable for ALS panels).
- 12 zonal fire and fault indications
- Activate controls via key switch or code entry
- 1.25 Amp switch mode power supply Nom 27V DC
- Class change I/P
- Alert I/P
- 6 programmable switched -ve outputs
- Test mode, with or without sounders
- Disable zones, sounder O/Ps, aux O/Ps & delays
| Category Type | Repeater |
|---|---|
| Colour | Grey |
| IP Rating | IP30 |
| System Type | Two Wire |
| Clearance | No |
Write Your Own Review
Enclosure
Cable Entry
Dimensions
Mains Supply
Battery Capacity
Outputs
Switch Inputs
Communiation Wiring
1.2mm Mild Steel IP30. Colour ref: MW334E Interpon coat
Via 20mm knockouts located in the top and rear of the cabinet
Back box: 300mm W x 250mm H x 80mm D, Lid: 308mm W x 260mm H x 23mm D
1.25A internal switch mode power supply, Nom 27v DC
6 x programmable sw -ve outputs (including on network card)
Class change & alert (pulsing)
Fault tolerant wiring requires 4 core (min 1.5mm) fireproof cable. Legacy radial wiring requires 2 core (min 15mm) fireproof cable.
