In stock
Product Code
BRF248A-R
SKU
HA1017R
Haes Boxed Auxiliary Relay
Boxed Auxiliary Relay
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.

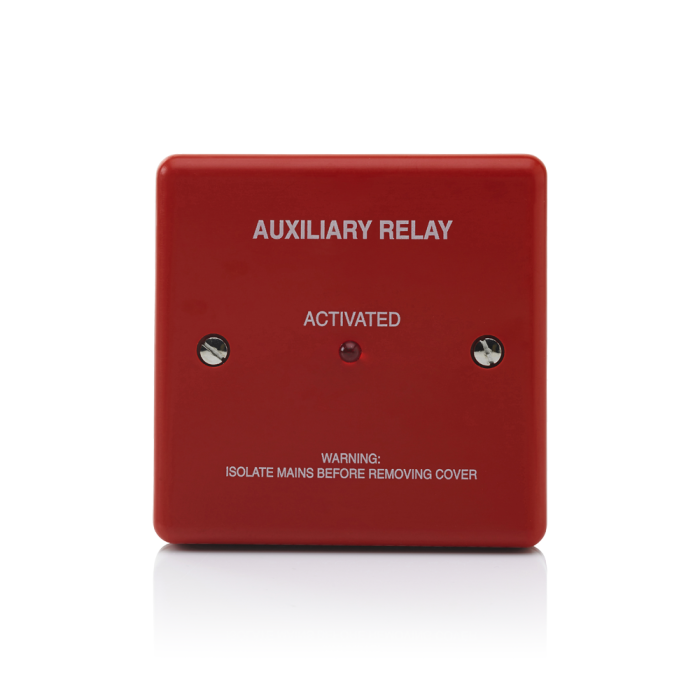

Boxed, double pole, 24V (nominal) change over relay switch suitable for a variety of low voltage, mains control and signalling purposes. The coil is polarised and suppressed and may be used on monitored circuits.
8 amp 24v double pole changeover relay mounted in a red fire retardant ABS enclosure with 'activated' LED. Outputs fused, contacts rated @250v ac.
- 8 amp double pole relay
- Contacts rated at 250v ac
- Activated LED indicator
- Fused outputs
- Red fire retardant ABS enclosure
- Suitable for surface or flush fitting
| Category Type | Relay |
|---|---|
| Colour | Red |
| System Type | Conventional |
| Clearance | No |
Write Your Own Review
Operating Voltage
Contact Rating
Fuse
Enclosure
24v DC (nominal)
250v AC 8A, double pole changeover
5 amp, 20mm quick blow (F)
ROHS compliant FR ABS - 87W x 87 h x 44 d (mm) Red
