In stock
Product Code
BRISOL-R
SKU
HA1007
Haes Boxed Isolate Relay
Red Boxed Isolate Relay
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.

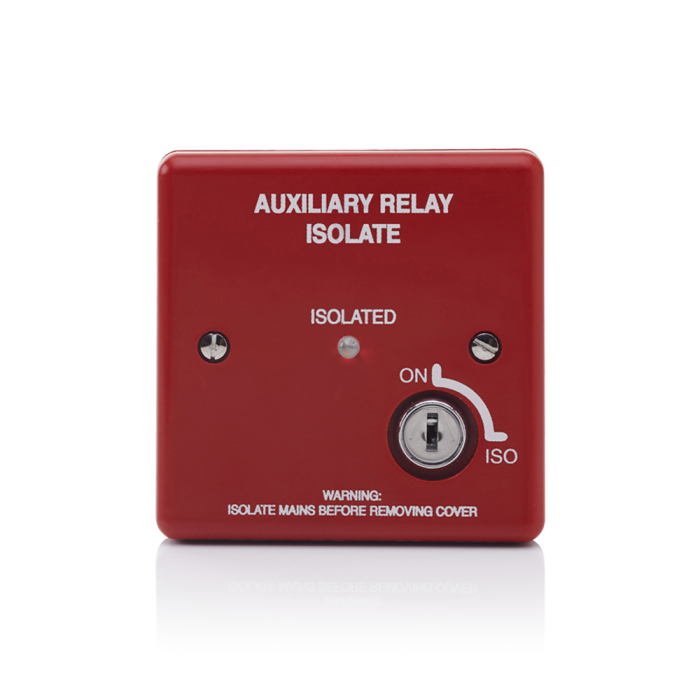

8 amp 24V double pole changeover relay mounted in a red fire retardant ABS enclosure with key switch, LED indicator & optional integral buzzer. Key switch can be used to isolate or activate the relay.
8 amp 24V double pole changeover relay mounted in a red fire retardant ABS enclosure with key switch, LED indicator & optional integral buzzer. Key switch can be used to isolate or activate the relay.
- 8 amp double pole relay
- Contacts rated at 250v ac
- Isolate key switch
- Isolated LED indicator
- Selectable internal buzzer
- Option to use key switch to energise the relay
- Red fire retardant ABS enclosure
- Suitable for surface or flush fitting
| Category Type | Relay |
|---|---|
| Colour | Red |
| System Type | Conventional |
| Clearance | No |
Write Your Own Review
Operating Voltage
Contact Rating
Quiescent Current
Isolated Current LED Only
Isolated Current LED + Buzzer
Isolated Current LED + Relay
Isolated Current LED + Buzzer + Relay
Activated Current
Enclosure
24vDC (nominal)
250vAC 8A, double pole changeover
0mA
5.3mA
7.8mA
12.1mA
12.8mA
18.3mA
ROHS Compliant FR ABS - 87 W x 87 H x 44 D (mm) Red
