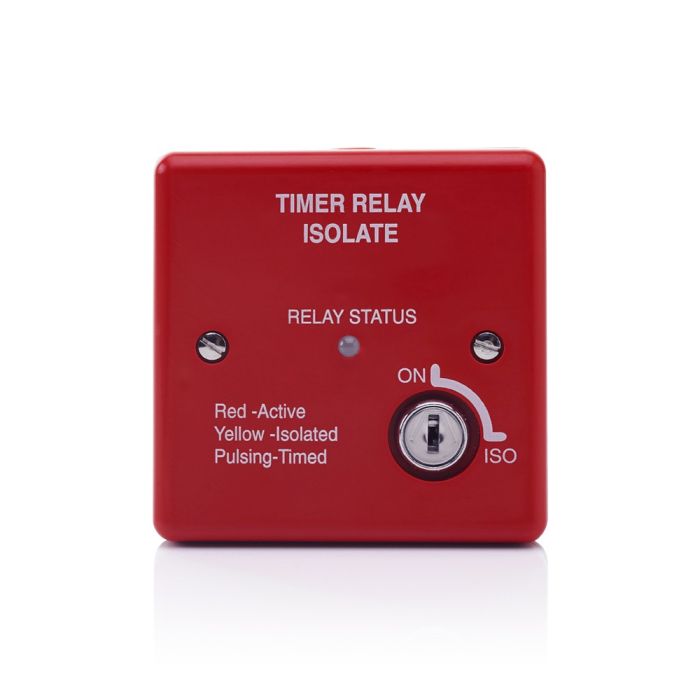

Haes Boxed Timer/Pulsing Relay
Red Boxed Timer/Pulsing Relay
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
8 amp double pole changeover relay mounted in a red fire retardant ABS enclosure with a programmable time delay circuit 0-255 seconds/minutes/or hours/ Alternatively relay can be set to pulse on and off. On and off times can be individually set from 0-255 seconds
8 amp double pole changeover relay mounted in a red fire retardant ABS enclosure with a programmable time delay circuit 0-255 seconds/minutes/or hours/ Alternatively relay can be set to pulse on and off. On and off times can be individually set from 0-255 seconds.
- 8 amp double pole relay
- Contacts rated at 250v ac
- Two colour relay status LED indicator
- Delay timer mode: 0-255 secs, mins or hrs
- Pulsing relay mode: ON & OFF times individually set 0-255 secs
- Red fire retardant ABS enclosure
- Isolate key switch
- Suitable for surface or flush fitting
| Category Type | Relay |
|---|---|
| Colour | Red |
| System Type | Conventional |
| Clearance | No |
Write Your Own Review
Operating Voltage
Contact Rating
Quiescent Current
Activated Current LED Only
Activated Current LED + Buzzer
Activated Current LED + Relay
Activated Current LED + Buzzer + Relay
Enclosure
24vDC (nominal)
250VAC 8A, double pole changeover
7.5mA
24mA
38mA
43mA
57mA
ROHS compliant FR ABS - 87 w x 87 h x 44 D (mm) Red
