In stock
Product Code
ECL-4
SKU
HA8004E

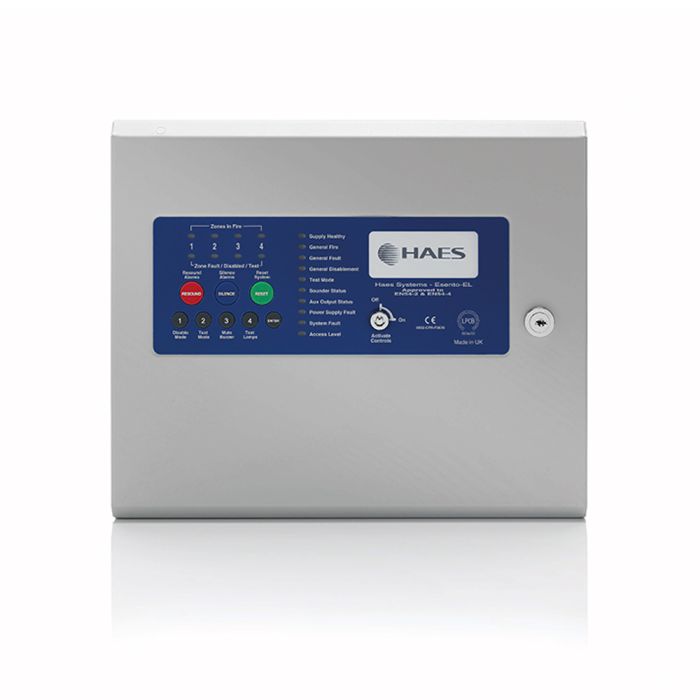

Haes Esento Eclipse 4 Zone Conventional or Twin Wire Control Panel
Esento Eclipse 4 Zone Control Panel
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Haes ECL-4
4 zone Esento Eclipse fire alarm control panel. Eclipse panels provide a range of our most popular programming features including; false alarm management, Twin Wire mode and non latching zones. (N.B. No networking or repeater panels)
Features:
- 4 zones
- Twin Wire selection by DIL switch
- Activate controls via key switch or code entry
- Integral detector removal monitoring
- 1.25 Amp switch mode power supply Nom 27V DC
- 2 monitored sounder outputs
- 2 Aux C/O relays (1 x Fire) (1 x Fault). voltage free
- Class change I/P
- Alert I/P
- Fire & fault switched -ve outputs
- False alarm mode
- Test mode, with or without sounders
- Disable zones, sounder O/Ps & aux O/Ps
- Alarm load, 800mA shared between all sounder outputs
- All sounder circuits are fused @ 500mA with resettable fuses.
| Approval | LPCB |
|---|---|
| Category Type | Panel |
| Colour | Grey |
| IP Rating | IP30 |
| System Type | Conventional |
| Clearance | No |
Write Your Own Review
Specifications
| Enclosure |
1.2mm Mild Steel IP30. Colour ref: MW334E Interpon powder coat |
| Cable Entry |
Via 20mm knockouts located in the top and rear of the cabinet |
| Dimensions |
Back box: 300mm W x 250mm H x 80mm D, Lid: 308mm W x 260mm H x 23mm D |
| Mains Supply |
1.25A internal switch mode power supply, Nom 27v DC |
| Battery Capacity |
2 x 3.2Ah 12v VRSLA |
| Detection Zones |
4 x conventional or Twin Wire. EOL = 4K7R |
| Sounder Circuits | 2 x monitored, fused @500mA. EOL = 4K7R |
| Twin Wire | Selectable in panel |
| On Board Relays | 1 x Fire, 1 x Fault, 3A, 30v volt free changeover |
| Programmable Outputs | 1 x Fire, 1 x Fault 40mA switch -ve outputs |
| Switch Inputs | Class change & alert (pulsing) |
| Intrinsically Safe Mode | Selectable per zone |
| False Alarm Management | Type A, B & C dependency modes, approved by LPCB |
