In stock
Product Code
XLEN-12
SKU
HA8012

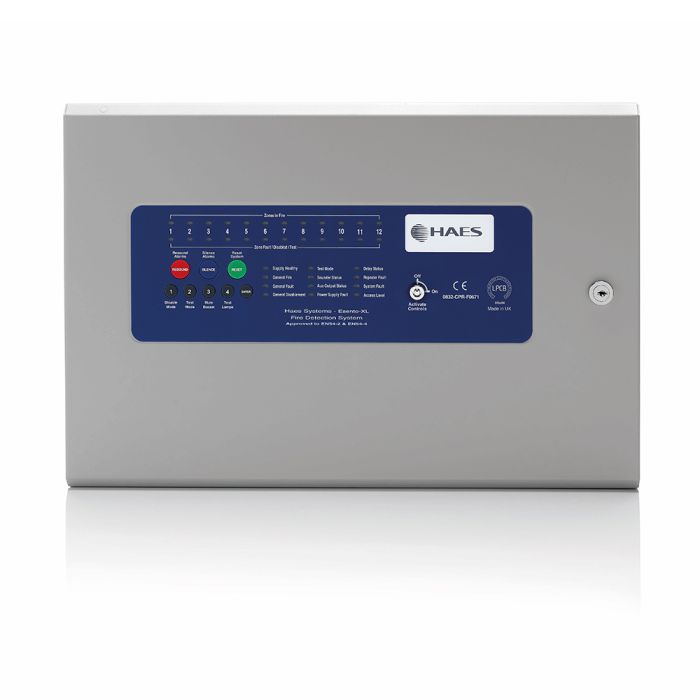

Haes Esento Excel 12 Zone Conventional or Twin Wire Control Panel
Esento Excel 12 Zone Conventional or Twin Wire Control Panel
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
12 zone Esento Excel fire alarm control panel. Excel panels provide the ultimate in flexibility, simplicity and reliability with a generous selection of programmalbe features, inputs and outputs. Fully networkable up to 8 control panels, 3 false alarm management modes, Twin Wire mode per zone and fully functional repeater panels.
12 zone Esento Excel fire alarm control panel. Excel panels provide the ultimate in flexibility, simplicity and reliability with a generous selection of programmalbe features, inputs and outputs. Fully networkable up to 8 control panels, 3 false alarm management modes, Twin Wire mode per zone and fully functional repeater panels.
| Category Type | Panel |
|---|---|
| Colour | Grey |
| IP Rating | IP30 |
| System Type | Conventional |
| Clearance | No |
Write Your Own Review
Enclosure
Cable Entry
Dimensions
Mains Supply
Battery Capacity
Detection Zones
Sounder Circuits
Twin Wire
Networking
On Board Relays
Outputs
Switch Inputs
Event Log
Intrinsically Safe Mode
False Alarm Management
Delay Timer
1.2mm Mild Steel IP30. Colour ref: MW334E Interpon powder coat
Via 20mm knockouts located in the top and rear of the cabinet
Back box: 450mm W x 300mm H x 85mm D, Lid: 460mmW x 310mm H x 25mm D
3A internal switch mode power supply, Nom 27v DC
4 x conventional or Twin Wire. EOL = 4K7R
2 x monitored, fused @500mA. EOL = 4K7R
Selectable per zone
Up to 8 control panels, fault tolerant RS485 communication, requires TPCA05 network card
2 x programmable, 3A, 30V volt free changeover, additional relay provided on high spec zone card
2 x programmable, 40mA switch -ve, 2 additional outputs provided on high spec zone card
Class change & alert (pulsing)
40 event history
Selectable per zone
Type A, B & C dependency modes, approved by LPCB
On board programmable delay timer 1-10 mins
