In stock
Product Code
ESA-1007
SKU
HA8504AE

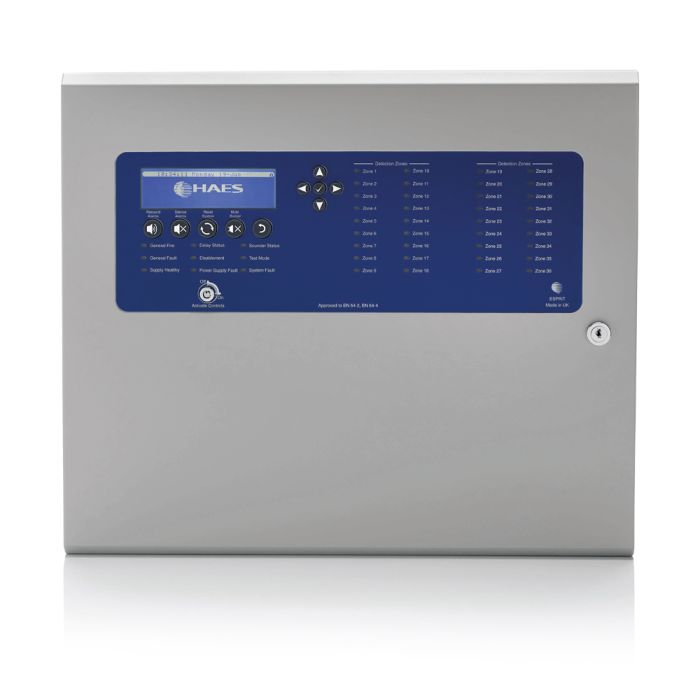

Haes Esprit Apollo 1-4 Loop Addressable Control Panel
The Esprit 1-4 loop analogue addressable control panel, utilises Apollo protocol and is compatible with the full range of devices including SOTERIA and REACH.
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
The Esprit 1-4 loop analogue addressable control panels have been developed to provide a simple to use and cost effective, robust solution for the intelligent fire systems market. Extendable up to four loop circuits, and with up to 240 addresses per loop when using Soteria devices, the control panels compact styling and programming power makes it ideal for all small and medium site requirements.
The large graphical display with easy to navigate menus provide fast and simple setup and maintenance. Esprit A panels support the full range of Apollo protocol devices, including their wireless and Soteria products. The panels are supplied with a 3.4Amp internal switch mode power supply module.
Esprit-A panels are approved to European standards; EN54-2 & EN54-4.
The Esprit 1-4 loop analogue addressable control panels have been developed to provide a simple to use and cost effective, robust solution for the intelligent fire systems market. Extendable up to four loop circuits, and with up to 240 addresses per loop when using Soteria devices, the control panels compact styling and programming power makes it ideal for all small and medium site requirements.
The large graphical display with easy to navigate menus provide fast and simple setup and maintenance. Esprit A panels support the full range of Apollo protocol devices, including their wireless and Soteria products. The panels are supplied with a 3.4Amp internal switch mode power supply module.
Esprit-A panels are approved to European standards; EN54-2 & EN54-4.
- One to four loops
- 2 programmable sounder circuits
- Large graphical display
- 255 date and time stamped event logs
- Auto learn function
- 240 devices per loop soteria
- False alarm management
- Programmable company logo
- Loop fault diagnostics
- Delays to outputs
- 64 programming groups
- 36 zonal LEDs
- 3.4A integral PSU
- Approved to EN54-2 & EN54-4
- Robust metal enclosure
| Category Type | Panel |
|---|---|
| Colour | Grey |
| IP Rating | IP30 |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
Enclosure
Cable Entry
Dimensions
Mains Supply
Battery Capacity
Charger Current
Auxiliary Supply
Loop
Sounder Circuits
Switch Inputs
Event Log
Earth Fault Monitoring
Display
1.2mm Mild Steel IP30. Colour ref MW334E Interpon Powder Coat
Via 20mm knockouts located in the top and rear of the cabinet
Back box: 450 W x 385 H x 100D (mm), Lid: 463W x 394 H x 25D (mm)
Universal switch mode PSU, 230Vac ± 10% 50Hz, 1.2A input current
Up to 18ah 24V, Fire retardant
1.2A
400mA, 28V DC
Apollo Protocol, Up to 4 loops, Each loop - 500mA
2 x 400mA 28V DC
CC, PULS
255 event, time & date stamped
Yes
240 x 54 Graphical LCD backlit
