In stock
Product Code
ESA-3002
SKU
HA8306AD

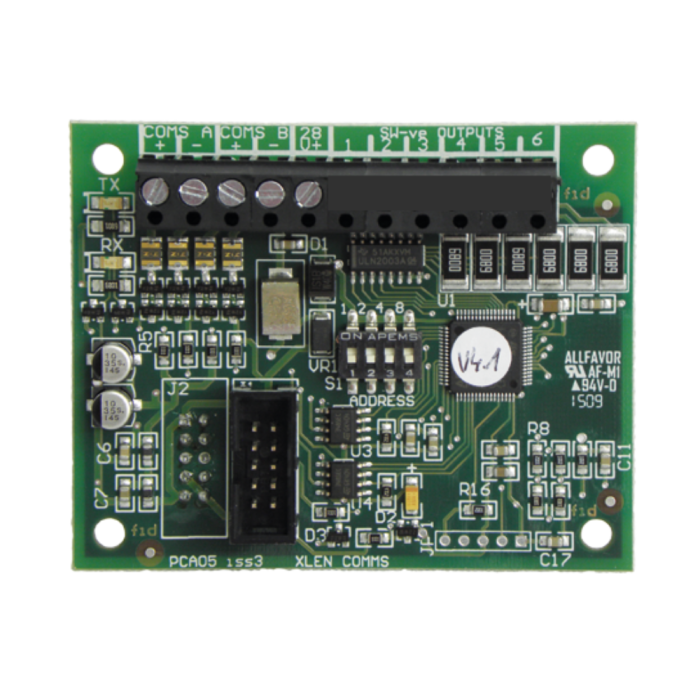

Haes Esprit Addressable Panel Network Card
Esprit Addressable Panel Network Card PCB
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
- Simple plug in communication card
- Allows networking of up to 8 control panels
- Add up to 8 repeater panels or remote display units to the network
- 2 core cable between cards
- Fully monitored fault tolerant network or legacy radial circuit wiring
- Includes 6 x programmable outputs
| Category Type | Network Card |
|---|---|
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
Standby Current
Cable Requirements
Comms A-B
Supply Output
Outputs
5.2mA
2 core 1.0mm (min) fire rated cable
RS485 comms, fused @ 20mA
28V, fused @ 500mA
6 x programmable switch -ve, max load 40mA
