In stock
Product Code
BRLDA
SKU
HA1015

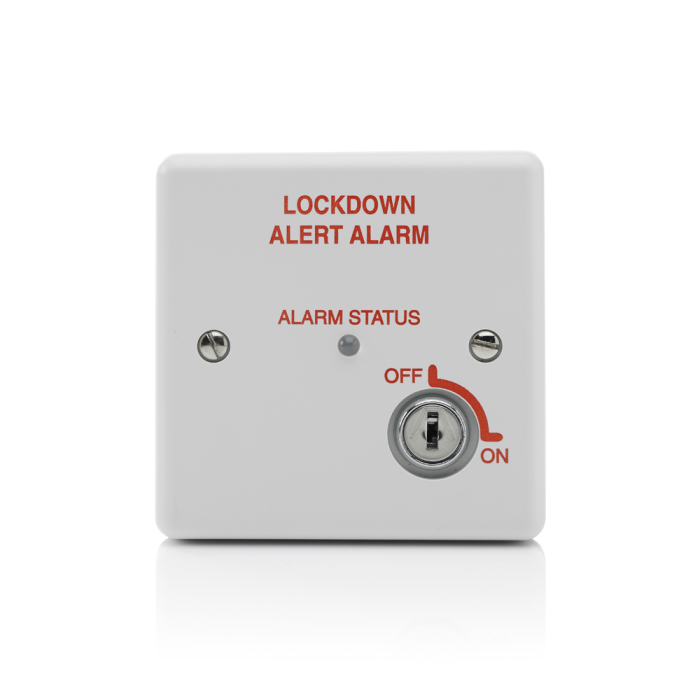

Haes Lockdown Alarm Relay
Lockdown Alarm relay
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Purpose designed key switch operated Lockdown Alarm pulsing relay. On and off times can be individually set to produce a truly customised ringing pattern. Works with existing fire alarm system.
Purpose designed key switch operated Lockdown Alarm pulsing relay. On and off times can be individually set to produce a truly customised ringing pattern. Works with existing fire alarm system.
- 8 amp double pole relay
- Key switch activation
- Alarm status LED indicator
- Use with existing fire alarm control panel
- ON & OFF pulsing times independently programmable up to 15 secs
- White fire retardant ABS enclosure
- Suitable for surface or flush fitting
| Amp | 8 |
|---|---|
| Category Type | Relay |
| Colour | White |
| System Type | Conventional |
| Clearance | No |
Write Your Own Review
Operating Voltage
Contact Rating
Quiescent Current
Activated Current LED Only
Activated Current LED + Buzzer
Activated Current LED + Relay
Activated Current LED + Buzzer + Relay
Enclosure
24VDC (nominal)
250VAC 8A, double pole changeover
7.5mA
24mA
38mA
43mA
57mA
ROHS compliant FR ABS - 87 W x 87 H x 44D (mm) Red
