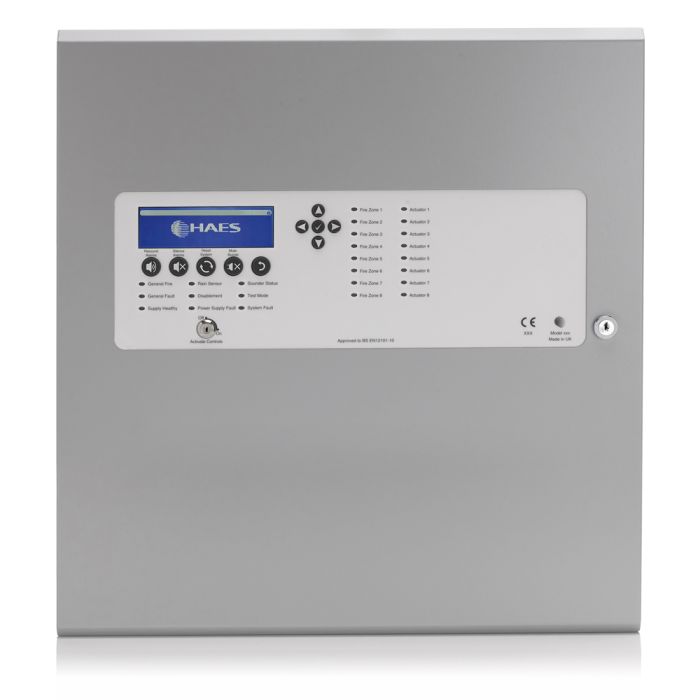

Haes MZAOV 10A Two Zone Control Panel
MAOV control panel with 10 amp power supply unit. Extendable to 8 zones.
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
MZAOV control panel with 10 amp integral power supply. Two detection zones, extendable up to 8. Large graphical LCD display. This purpose designed multi detection zone automatic opening vent control panel has been developed to provide a comprehensive and flexible solution to smoke vent control scenarios and is suitable for use with vents, windows and roof lights.
MZAOV control panel with 10 amp integral power supply. Two detection zones, extendable up to 8. Large graphical LCD display. This purpose designed multi detection zone automatic opening vent control panel has been developed to provide a comprehensive and flexible solution to smoke vent control scenarios and is suitable for use with vents, windows and roof lights.
- 10 amp integral PSU
- Large graphical display
- Easy to program
- Up to 8 detection zones, Conventional and Twin-wire
- Up to 8 external inputs from other detection systems, to activate
- Up to 8 monitored Actuator outputs for controlling smoke vents
- Switch inputs to control wide combination of vents
- Fireman switch input to override all other inputs
- All inputs and actuator outputs monitored for Short and Open Circuit
- User switch inputs configurable as local fireman switches
- Thermostat input - Ventilation mode. Vents openable in 10% steps
- Actuators configurable for independent operation or linked together as per required by 12101-9
- Optional support for Rain sensor, PIR and BMS control
- Staggered start of actuators to avoid the combined start-up currents from simultaneous actuator activations
- Monitoring of unused inputs and outputs can be disabled
| Category Type | Panel |
|---|---|
| IP Rating | IP30 |
| Clearance | No |
Write Your Own Review
Enclosure
Cable Entry
Dimensions
Mains Supply
Battery Capacity
Detection Zones
Twin Wire
On Board Relays
Fireman's Switch Input
Vent Control Input
Actuator Output
Inrush Current
Aux Output
BMS Connection
False Alarm Management
1.2mm Mild Steel IP30. Colour ref: MW334E Interpon powder coat
Via 20mm knockouts located in the top and rear of the cabinet
Back box: 460mm W x 490mm H x 110mm D, Lid: 470mm W x 500mm H x 25mm D
10A internal switch mode power supply, Nom 27v DC
2 x 18Ah 12V VRLA
1 to 8 monitored detection zones. EOL = 6K8
Selectable in panel (enables AV devices to be connected to det cct)
1 x Alarm, 1 x Fault, volt free changeover, Max 3A
Fireman's control switch input for Open/Close/Auto
1 to 8 vent control switch inputs, Open/Close (rocker switch)
1 to 8 reversal actuator control output (8A total max) can be configuered as a maintained output for a magnetic door
20A for an interval of 2 seconds
1 to 8 voltage free normally open relay contact, closing when the associated zone is activated, Max 3A
0/10v postitional control input 10% steps, 0/10v positional data output. (Available on seperate PCB)
Type A, B and C dependency mode, approved by LPCB
