Haes Timer/Pulsing Relay Card
Timer Pulsing Relay Card
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.

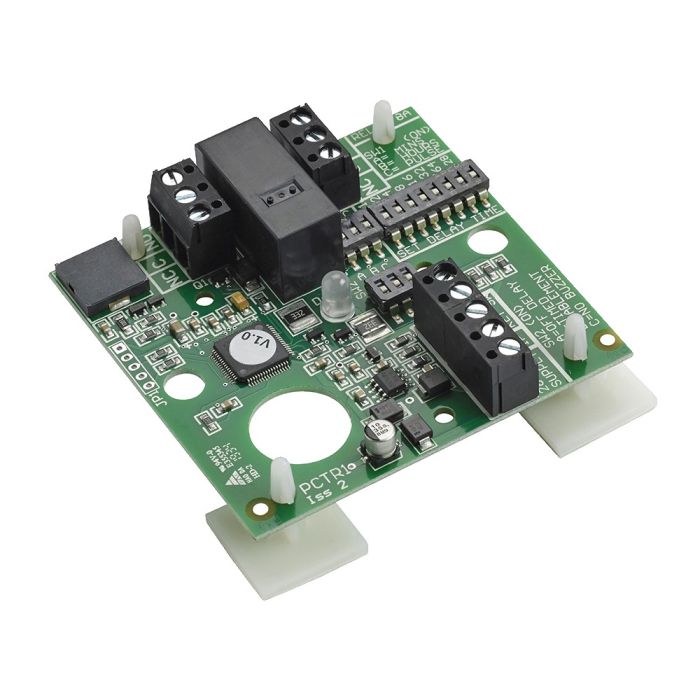

8 amp double pole PCB mounted cgangeover relay with a programmable time delay circuit 0-255 seconds/minutes /or hours. Alternatively relay can be set to pulse on and off. On & off times can be individually set from 0-255 seconds Supplied c/w Nylon self adhesive mounting pillars.
8 amp double pole PCB mounted changeover relay with a programmable time delay circuit 0-255 seconds/minutes /or hours. Alternatively relay can be set to pulse on and off. On & off times can be individually set from 0-255 seconds. Supplied c/w Nylon self adhesive mounting pillars.
- 8 amp double pole relay
- Contacts rated at 250v ac
- Two colour relay status LED indicator
- Delay timer mode: 0-255 secs, mins or hrs
- Pulsing relay mode: ON & OFF times individually set 0-255 secs
| Amp | 8 |
|---|---|
| Category Type | Relay |
| System Type | Conventional |
| Clearance | No |
Write Your Own Review
Operating Voltage
Contact Rating
Quiescent Current
Activated Current LED Only
Activated Current LED + Buzzer
Activated Current LED + Relay
Activated Current LED + Buzzer + Relay
24VDC (Nominal)
250VAC 8A, double pole changeover
7.5mA
24mA
38mA
43mA
57mA
