In stock
Product Code
ALN-EN(BLK)
SKU
HO2502B

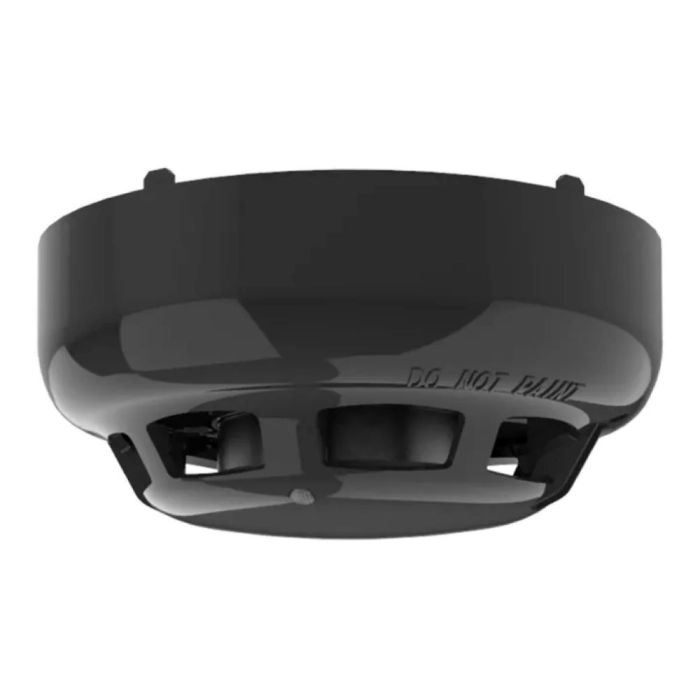

Hochiki Addressable Optical Smoke Detector, Black
Addressable Optical Smoke Detector, Black
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Model ALN-EN is a Photoelectric Smoke Sensor, which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol. The ALN-EN incorporates Hochiki’s newest High Performance Chamber Technology removing the need to use Ionisation Smoke Sensors in the majority of applications. This also allows the sensor threshold level to be increased, thereby improving the signal to noise ratio and reducing susceptibility to false alarms.The ALN-EN smoke chamber is easily removed or replaced for cleaning and
utilises a unique improved baffle design which allows smoke to enter the chamber whilst keeping out ambient light.
• Removable, High Performance chamber
• Twin LEDs allow 360° viewing – green when polling, amber when isolating, red in fire
• Locking mechanism (sensor to base)
• Variable sensitivity
• Electronically addressed
• Pulsing/non-pulsing controlled from panel
• Approved by LPCB & VdS
• SIL Level 2 approved variant available
| Approval | EN54-7 |
|---|---|
| Category Type | Detector |
| Colour | Black |
| Detection | Optical |
| IP Rating | IP42 |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
Ordering Code
Operating Voltage
Low Power Mode
Quiescent Current
Alarm Current (controlled by CIE)
Transmission Method
Operating Temperature Range
Operating Humidity
Sensitivity Levels
Storage Temperature Range
Storage Humidity
Colour / Case Material
Weight (g)
Diameter (mm) / Height (mm)
Compatible Bases
Base Fixing Centres (mm)
Approvals
Wind Exposure (Ref EN54-7)
Ingress Protection Rating
ALN-EN(BLK) - Black
17 – 41 VDC
(typ) 120 μA (typ.)
(typ) 400 μA (typ.)
9.1 mA (excluding remote indicator)
Digital Communications using ESP
-10 °C to + 50 °C
95%RH - Non Condensing (at 40 °C)
2%/m to 4.5%/m
-30 °C to +60 °C
<80% RH at 60 °C
Ivory, White or Black / ABS
95
100 / 45
YBN-R/3, YBO-BS, YBO-BSB2, YBN-R/3(SCI)
48 ~ 74
LPCB / VdS
1 ± 0,2 m s-1
IP42
