In stock
Product Code
YBO-R/6R
SKU
HO2006RL

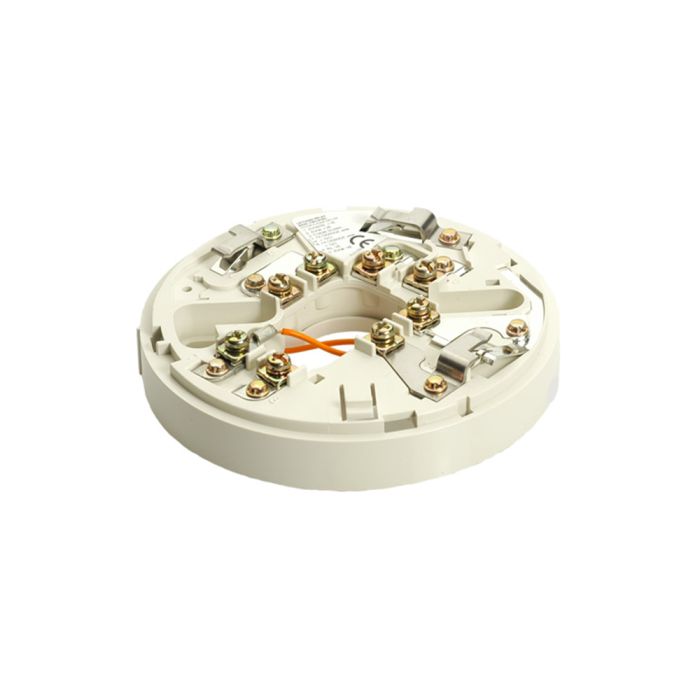

Hochiki Conventional Latching Relay Base, Ivory
Conventional Latching Relay Mounting Base, Ivory
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Model YBO-R/6R is a Conventional Detector Mounting Base associated with the New CDX Range of Detectors and is fully compatible with the majority of existing conventional fire alarm and security control panels.
It is supplied with square cable clamps for secure and reliable cable termination but the base does not provide line continuity during detector removal, therefore if Call Points are being used then these should be wired onto the zone first. The integrated third terminal provides remote indicator output.
The YBO-R/6R is a Conventional Detector Mounting Base associated with the New CDX Range of Detectors and is fully compatible with the majority of existing conventional fire alarm and security control panels. It is supplied with square cable clamps for secure and reliable cable termination but the base does not provide line continuity during detector removal, therefore if Call Points are being used then these should be wired onto the zone first. The integrated third terminal provides remote indicator output.
Features
- Integral remote indicator output
- Wide voltage range - can be used in security systems
- Rugged design
- Quick connections via square cable clamps
- Accepts 2.5 mm2 cables
- Bayonet slot, low insertion force for detectors
- Approved by LPCB.
| Category Type | Base |
|---|---|
| Colour | Ivory |
| System Type | Conventional |
| Clearance | No |
Write Your Own Review
| Operating Voltage | 9.5-30 VDC |
| Relay Voltage | 30 VDC @ 1A (non-inductive) |
| Operating temperature range | -10°C to +50°C |
| Storage temperature range | -30°C to +60°C |
| Maximum Humidity | 95% RH Non-condensing (at 40°C) |
| Colour/Case Material | Ivory / ABS |
| Weight (g) / Dimensions (mm) | 87 / 100 / 13 |
| Fixing centres (mm) | 48-74 |
| Maximum wire thickness | 2.5mm² cables |
