In stock
Product Code
YBN-R/6(WHT)
SKU
HO2006W

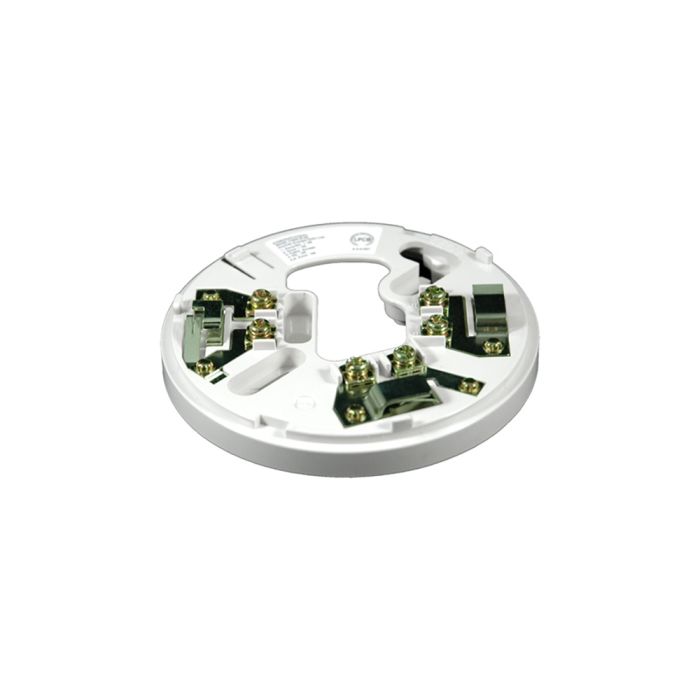

Hochiki Conventional Mounting Base, White
Conventional electronics free mounting base, White
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Model YBN-R/6(WHT) is a Conventional Detector Mounting Base associated with the CDX Range of Detectors and is fully compatible with the majority of existing conventional fire alarm control panels.
It is supplied with square cable clamps for secure and reliable cable termination but the base does not provide line continuity during detector removal, therefore if Call Points are being used then these should be wired onto the zone first. The integrated third terminal provides remote indicator output.
The YBN-R/6 is a Conventional Detector Mounting Base associated with the CDX Range of Detectors and is fully compatible with the majority of existing conventional fire alarm control panels. It is supplied with square cable clamps for secure and reliable cable termination but the base does not provide line continuity during detector removal, therefore if Call Points are being used then these should be wired onto the zone first. The integrated third terminal provides remote indicator output.
Features
- Integral remote indicator output
- Low Profile, only 8 mm
- Rugged design and electronics free
- Quick connections via square cable clamps
- Accepts 2.5 mm2 cables
- Bayonet slot, low insertion force for detectors
- Also available in ivory or black
| Category Type | Base |
|---|---|
| Colour | White |
| System Type | Conventional |
| Clearance | No |
Write Your Own Review
| Operating Voltage | 9.5-30 VDC |
| Operating temperature range | -10°C to +50°C |
| Storage temperature range | -30°C to +60°C |
| Maximum Humidity | 95% RH Non-condensing (at 40°C) |
| Colour/Case Material | White / ABS |
| Weight (g) / Dimensions (mm) | 51/ 100 / 8 |
| Fixing centres (mm) | 48-74 |
