In stock
Product Code
YBO-R/6PA(WHT)
SKU
HO2008W

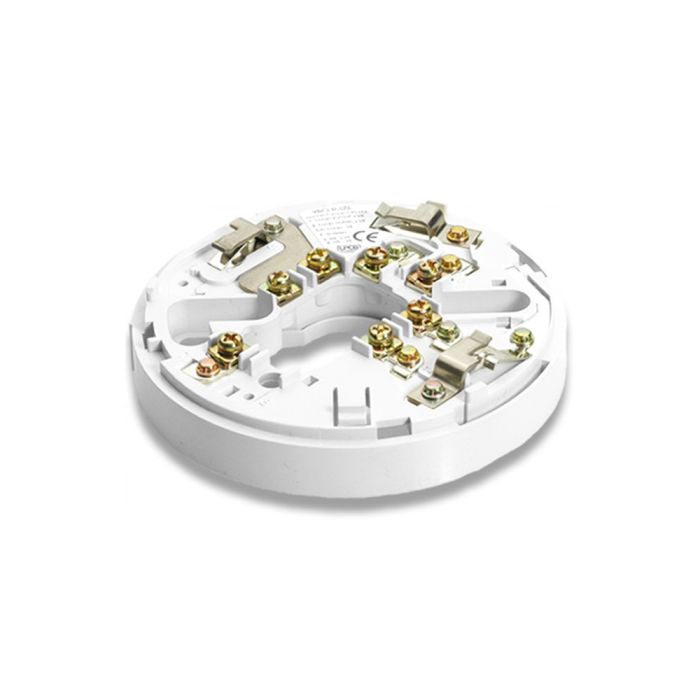

Hochiki Conventional Savwire Base, White
Conventional Detector Mounting Base for 2-Wire (Savwire) Systems, White
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Model YBO-R/6PA is a Conventional Detector Mounting Base for 2-Wire S systems where detectors and sounders are on same zone cables*.
*Control Panel compatibility required
The YBO-R/6PA(WHT) is a Conventional Detector Mounting Base for 2-Wire S systems where detectors and sounders are on same zone cables*. Control Panel compatability required
Features
- Integral remote indicator output
- Rugged design
- Dedicated cable screen terminal
- Quick connection via square cable clamps Accepts from 1 to 2.5 mm2 cables
- Bayonet slot, low insertion force for detectors.
| Category Type | Base |
|---|---|
| Colour | White |
| System Type | Two Wire |
| Clearance | No |
Write Your Own Review
| Operating Voltage | 15-30 VDC |
| Operating temperature range | -10°C to +50°C |
| Storage temperature range | -30°C to +60°C |
| Maximum Humidity | 95% RH Non-condensing (at 40°C) |
| Colour/Case Material | White / ABS |
| Weight (g) / Dimensions (mm) | 80 / 100 / 13 |
| Fixing centres (mm) | 48-74 |
| Maximum wire thickness | 2.5mm² cables |
