In stock
Product Code
DFG-60BLKJ
SKU
HO2009

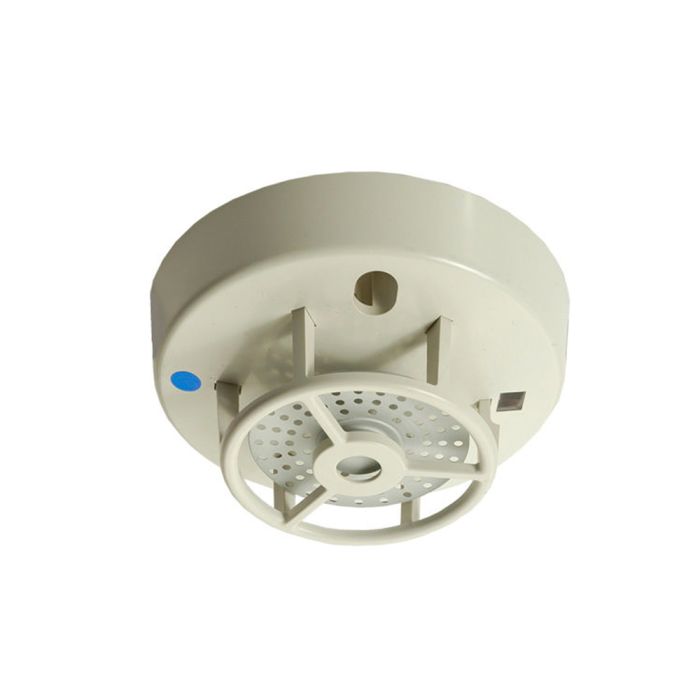

Hochiki Conventional Weatherproof Heat Detector, Ivory
Conventional Weatherproof Heat Detector, Ivory
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Model DFG-60BLKJ is a 60 °C Fixed Temperature Waterproof Heat Detector, the detector uses a bi-metallic strip to sense temperature change, therefore consuming minimal standby current and providing high reliability.
The DFG-60BLKJ is particularly suited to environments, which are exposed to high levels of condensation or are hosed down. The detector has a wide operating margin allowing it to respond to both slow and fast increases in temperature; it can also sense temperature reliably in a horizontal or vertical position.
The DFG-60BLKJ requires no mounting base as short flying leads are provided for connection to the conventional zone and remote LED. If a back box is required, then the DFG-60BLKJ can be mounted using the Hochiki MBB-1 Marine Approved back Box.
The DFG-60BLKJ is a 60 °C Fixed Temperature Waterproof Heat Detector, the detector uses a bi-metallic strip to sense temperature change, therefore consuming minimal standby current and providing high reliability. The DFG-60BLKJ is particularly suited to environments, which are exposed to high levels of condensation or are hosed down. The detector has a wide operating margin allowing it to respond to both slow and fast increases in temperature; it can also sense temperature reliably in a horizontal or vertical position. The DFG-60BLKJ requires no mounting base as short flying leads are provided for connection to the conventional zone and remote LED. If a back box is required, then the DFG-60BLKJ can be mounted using the Hochiki MBB-1 Marine Approved back Box.
Features
- Waterproof design – rated to IP67
- Low profile shape
- Utilises a bi-metallic strip to sense temperature change
- No Mounting base required
- Minimal standby current
- Approved by LPCB & VdS.
| Category Type | Detector |
|---|---|
| Colour | Ivory |
| Detection | Heat |
| System Type | Conventional |
| Clearance | No |
Write Your Own Review
| Operating Voltage | 15-30 VDC (Nominal rating at 24V DC) |
| Quiescent Current | Minimal |
| Maximum current in alarm (typical) | 50mA at 24VDC |
| IP Rating | IP67 |
| Operating temperature range | -10°C to +40°C |
| Storage temperature range | -30°C to +70°C |
| Colour/Case Material | Ivory / Modified Polycarbonate |
| Weight (g) / Dimensions (mm) | 80 / ∅98 x H 45 |
| Base Fixing centres (mm) | 70 |
| Approvals to EN54-5:2017 Category A2 | LPCB VDS (G204048)* Note Only applicable to YBN-R/6SK base |
