In stock
Product Code
KA11020M2
SKU
KE8102S

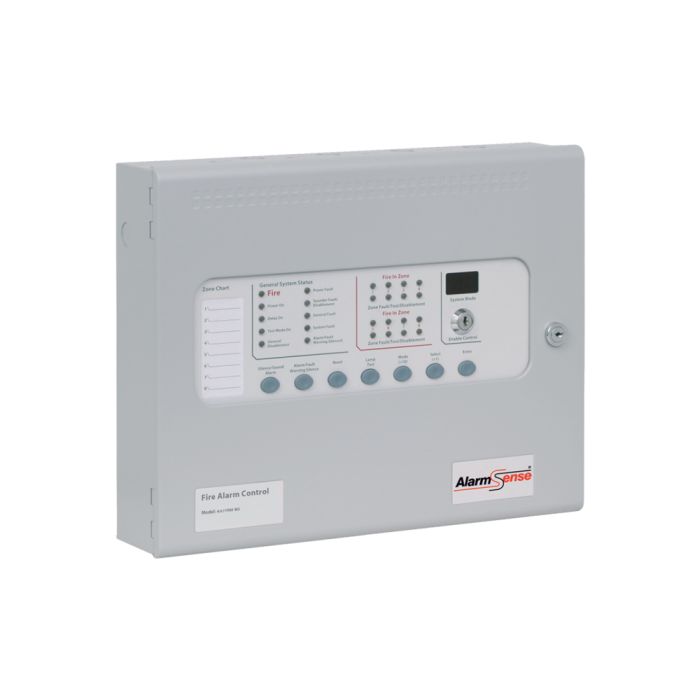

Kentec 2 Zone CPA Panel Surface
2 Zone Kentec CPA Panel Surface
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
The new Sigma CP-A AlarmSense® range consists of a series of conventional, 2, 4 and 8 zone fire alarm control panels designed and approved in accordance with European standards BS EN54-2 and BS EN54-4 Fire Detection and Fire Alarm systems - Control and Indicating Equipment.
The new Sigma CP-A AlarmSense® range consists of a series of conventional, 2, 4 and 8 zone fire alarm control panels designed and approved in accordance with European standards BS EN54-2 and BS EN54-4 Fire Detection and Fire Alarm systems - Control and Indicating Equipment.
Features
- 2 wire systems, reduces installation cabling
- 2 wire repeatersand ancillary boards via serial bus
- Adjustable sounder delay time
- Sounder configuration options
- Alarmsense local alarm feature supported
- Compatible with all Alarmsense devices
- Fully certified to BS EN54-2 and BS EN54-4
- Short circuit fire selectable by zone
| Category Type | Panel |
|---|---|
| Colour | Grey |
| IP Rating | IP30 |
| System Type | Two Wire |
| Clearance | No |
Write Your Own Review
| Construction | 1.2mm mild sheet steel |
| IP rating | IP30 |
| Finish | Epoxy powder coated |
| Colour - lid & box | BS 00 A 05 grey - fine texture |
| Colour - control panel & labels | RAL7047 light grey - satin |
| Weight | 6kg |
| Supply voltage | 230VAC (+10%/-15%) |
| Mains supply fuse | 1.6 Amp 250V |
| Power supply DC rating | 24V Amps |
| Maximum battery size | 7Ah 12V (2 per panel) |
| Fault contact rating | 30V DC 1 Amp |
| Local fire contact rating | 30V DC 1 Amp |
| Fire contact rating | 30V DC 1 Amp |
| Common sounder output rating | 0.5A per output (max 1.6A over all outputs) |
| AlarmSensesounder output rating | 0.2A per output |
| Detection zone current | 1.6 milliamps |
| Detection zone EOL resistor | 3K3 5% |
| Sounder output EOL resistor | 10k 5% |
| Cable capacity | 2.5mm² per terminal |
| Operating temperature | -5°C to +40°C |
| Operating humidity | <95% (non condensing) |
