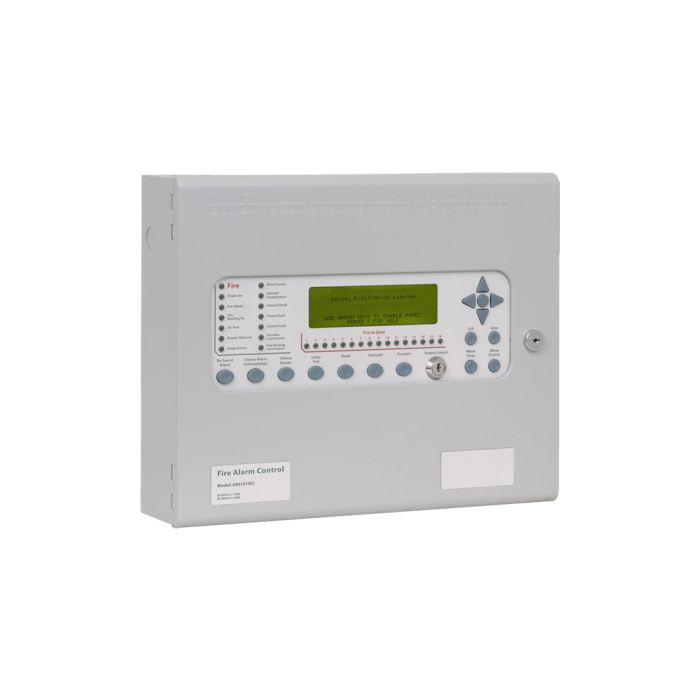

Kentec Syncro AS 2 Loop Control Panel, Hochiki Protocol
Syncro AS 2 Loop Panel, Hochiki Protocol
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Syncro AS is an analogue addressable fire control panel, available in either one or two detection loops. It combines compact and practical styling with the programming power and connectivity normally associated with much larger systems.
With its ease of use and simplicity to install, Syncro AS is straightforward to understand for installers, commissioning engineers and end users alike. Using the latest microprocessor, it provides a flexible control system with high reliability and integrity.
Being a multi-protocol panel, enabling choice to our customers, Syncro AS supports Apollo, Argus Vega and Hochiki detection, making it ideal for small and medium sites that require advanced fire sensing and evacuation options. It can thought be expanded and networked to become part of much larger systems if the need arises, therefore providing a future proof solution for any size of installation.
Syncro AS is an analogue addressable fire control panel, available in either one or two detection loops. It combines compact and practical styling with the programming power and connectivity normally associated with much larger systems.
With its ease of use and simplicity to install, Syncro AS is straightforward to understand for installers, commissioning engineers and end users alike. Using the latest microprocessor, it provides a flexible control system with high reliability and integrity.
Being a multi-protocol panel, enabling choice to our customers, Syncro AS supports Apollo, Argus Vega and Hochiki detection, making it ideal for small and medium sites that require advanced fire sensing and evacuation options. It can thought be expanded and networked to become part of much larger systems if the need arises, therefore providing a future proof solution for any size of installation.
| Category Type | Panel |
|---|---|
| Colour | Grey |
| IP Rating | IP30 |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
| Construction | 1.2mm mild sheet steel |
| IP Rating | IP30 |
| Finish | Epoxy powder coated |
| Colour - lid & box | BS 00 A 05 grey - fine texture |
| Colours - control plates & labels | RAL 7047 light grey - satin |
| Weight | 6kg (standard panel) |
| Display | 8 lines of 40 characters graphic LCD |
| Mains voltage supply | 110 or 230V AC 50 or 60Hz, (specify when ordering, default is 230V) |
| Mains supply fuse | 1.6A 250V |
| Power supply DC rating | 24V 3 Amps |
| Aux 25V supply | Fused at 500 milliamps |
| Maximum battery size | 9Ah 12V (2 per panel) (non-networked) |
| Fault contact rating | 30V DC 1 Amp |
| Fire contact rating | 30V DC 1 Amp |
| Alarm contact rating | 30V DC 1 Amp |
| Sounder output rating | Fused at 1 Amp each |
| Detection loop | 400 milliamp output |
| Detector protocols | Apollo (S90, XP95, Discovery), Argus Vega or Hochiki ESP |
| Printer port | Serial RS232 |
| Serial expansion port | Serial RS485 (Compatible with all Syncro I/O modules) |
| PC Port | Serial RS232 |
| Network connection | RS485 - Up to 64 panels via fully fault tolerant optional network card |
| Remote Silence Input (SIL) | Switched -ve |
| Remote fault input (FLT) | Switched -ve |
| Remote reset input (RES) | Switched -ve |
| Remote alert input (INT) | Switched -ve |
| Remote evacure input (CNT) | Switched -ve |
| Download Lead | Standard S17, X187LS economy |
| Configuration | Via Loop Explorer PC Utlity |
| PC Graphics | Via Ockular |
| Modem | Optional dial ip modem for remote diagnostics (Can be fitted to M3 size enclosure only) |
