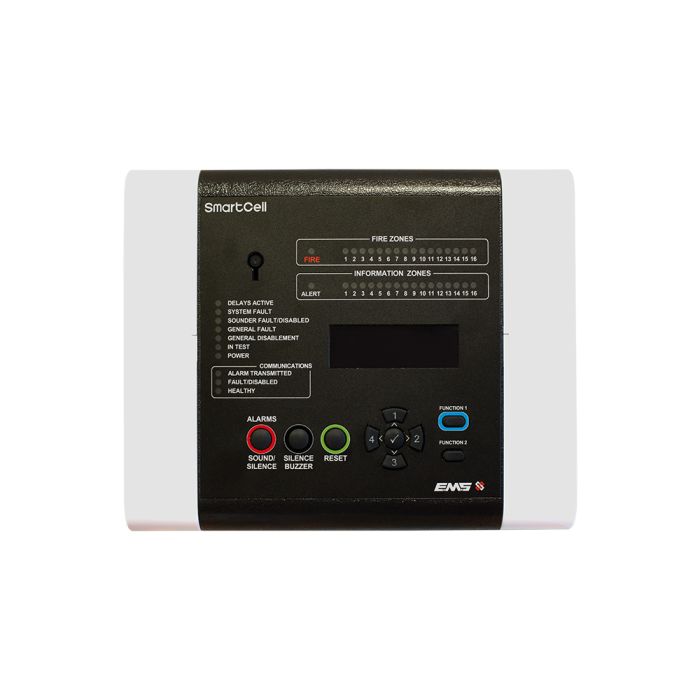

SmartCell Wireless Control Panel 230VAC

In stock
Product Code
SC-11-1201-0001-99
SKU
UT8600AC

SmartCell Wireless Control Panel 230VAC

Wireless Control Panel 230VAC

DELIVERY

We always aim to same day dispatch on all orders received before 2.30pm.

Read more about our delivery policy

TRADE COUNTER

Firesense also offer the ability to collect your order from our trade counter.

Read more about our trade counter

EMS SmartCell 230v Panel

The SmartCell SC-11-1201-0001-99 is a compact 230 VAC wireless fire alarm control panel designed as the central control point for a SmartCell wireless fire detection system. It communicates bidirectionally with wireless field devices over the 868–870 MHz frequency band and provides an 80-character OLED user display with 16 zone indicators. The panel can support up to 32 fire detection devices and forms part of a SmartCell system capable of supporting up to 64 wireless fire or information devices in total. The 230 VAC version incorporates a PSU and a 6V, 4Ah standby battery, providing a specified 48-hour battery standby period. This particular version is supplied without a communications module. However, the panel is designed to accommodate the separate internal SmartCell communications card, SC-61-0001-0001-99 for access to SmarCell Services. The panel also provides two onboard relay outputs. Its wireless architecture is intended to reduce the cabling normally associated with conventional and addressable fire alarm installations, making SmartCell suitable for small to medium-sized fire system applications.

At a glance

SmartCell has been designed as a complete wireless fire detection system to protect people and property. The system incorporates separate information zones which allow input devices to be configured in multiple configurations, providing maximum flexibility to the user and designer. A SmartCell system can support up to 64 wireless (Fire or Information devices) with maximum of 32 Fire Detection devices. Communication between devices and the control panel is bidirectional and operates in the European harmonised 868MHz frequency band. With significant time saving against conventional and addressable fire system installations, no cables, no mess and no inconvenience to everyday business, SmartCell is perfect for all small to medium sized fire system installations.

Details

  • Fully wireless
  • Quick and easy to install
  • Compact enclosure
  • 80 character OLED display
  • Accommodates internal communications card for SmartCell Services connection
  • 24 VDC version also available
Attributes
Approval EN54-2
Category Type Panel
IP Rating IP30
System Type Wireless
Clearance No
Write Your Own Review
You're reviewing:SmartCell Wireless Control Panel 230VAC
Your Rating

General

User interface
16 zone indicators
Maximum system capacity (device count)
1 to 32 dual detectors & 1 to 32 other devices



Electrical

Power supply type
230 VAC
Operating voltage
220 to 240 VAC,​ 50 Hz,​ 0.3 A
Current consumption
5 mA (PSU),​ plus 100 mA from control panel (with mains applied)
56 mA (quiescent current in mains fail)
106 mA (alarm current in mains fail)
Note: if measuring quiescent current upon mains fail,​ please wait 5 minutes after disconnection of mains



Zone

Maximum zone capacity
up to 16



Standby battery

Capacity
6 V,​ 4 Ah



Physical

Form factor
Compact
Physical dimensions
275 x 220 x 80 mm (W x H x D)
Net weight
1.55 kg
Mounting type
Surface mount
Cable entries
4 x 100 mm (bottom) / 4 x 100 mm (back)



Environmental

Operating temperature

-5 to +45°C
Storage temperature
0 to +30°C
Relative humidity
95% noncondensing max.
Environment
Indoor
IP rating
IP30



Wireless signalling

Operating frequency
868 to 870 MHz
Output transmitter power
14 dBm max. / 25 mW



Regulatory

Compliancy
CE
Certification
BOSEC,​ CP
Standards
EN54-2
EN54-4
EN54-13
EN54-25
