SmartCell Wireless

In stock
Product Code
SC-23-0220-0001-99
SKU
UT2607SB

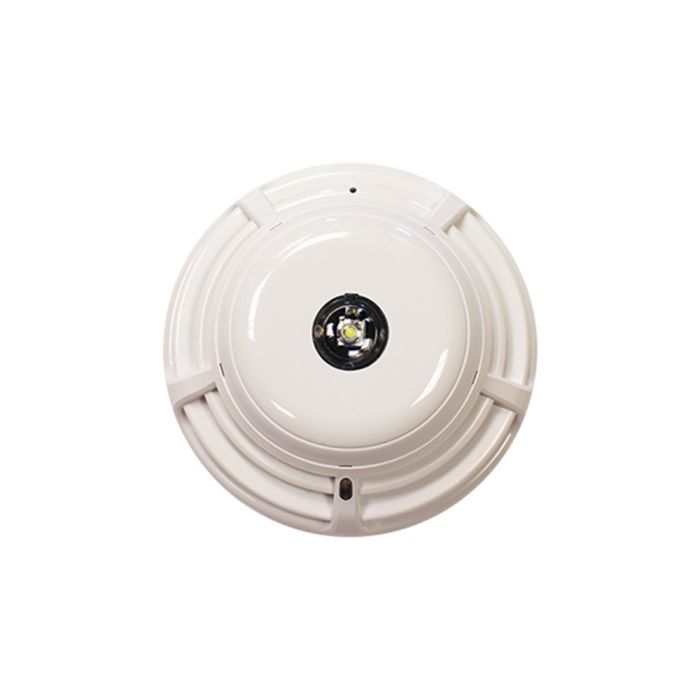

SmartCell Wireless Dual Smoke/Heat Detector with Sounder VAD White Flash

Wireless Dual Smoke/Heat Detector with Sounder VAD

DELIVERY

We always aim to same day dispatch on all orders received before 2.30pm.

Read more about our delivery policy

TRADE COUNTER

Firesense also offer the ability to collect your order from our trade counter.

Read more about our trade counter

SmartCell Dual Smoke/Heat Detector with Sounder VAD

SmartCell overview

SmartCell has been designed as a complete wireless fire detection system to protect people and property. The system incorporates separate information zones which allow input devices to be configured in multiple configurations, providing maximum flexibility to the user and designer. A SmartCell system can support up to 64 wireless devices consisting of 32 fire devices and 32 information devices. Communication between devices and the control panel is bidirectional and operates in the European harmonised 868MHz frequency band. With significant time saving against conventional and addressable fire system installations, no cables, no mess and no inconvenience to everyday business, SmartCell is perfect for all small to medium sized fire system installations

The SmartCell Dual Smoke / Heat Detector With Sounder is quick and easy to install and offers individual addressing at the SmartCell Control Panel. Features include dual smoke and/or heat detection, integrated sounder with 32 tones, bidirectional 868 MHz communication, fire indication LED and an anti-tamper locking mechanism. This device is third party certified and compatible with the full SmartCell product range.

Features:

  • Fully wireless
  • Quick and easy to install
  • Compact profile
  • Flexible detection; smoke and/or heat
  • Includes part 23 beacon
  • 32 sounder tones
  • Unique design
  • Inbuilt locking mechanism
Attributes
Approval EN54-23
Category Type Detector Sounder Visual Alarm Device
Colour White
Detection Multisensor
IP Rating IP21C
System Type Wireless
Clearance No
Write Your Own Review
You're reviewing:SmartCell Wireless Dual Smoke/Heat Detector with Sounder VAD White Flash
Your Rating

General

Wireless frequency
868 MHz
Compatibility
SmartCell,​ Excellence Gateway



Electrical

Batteries
3 x 3.6 V lithium thionyl chloride batteries.
Fanso: ER14505M
HCB: ER14505M (HCB-JS-TZ-02-547)



Sounder

Output level
89 dB(A) at 1 m max.
Output level adjustment
High or low
Selectable tones
32



VAD

Colour
White
Rating
C-3-12
Flash frequency
0.5 Hz (1 flash,​ every 2 seconds)



Detection

Sensitivity
Smoke: Normal,​ Normal+AVF. Heat: 58 °C,​ static (A2S),​ 58 °C rate of rise (A2R),​ 72 °C static (BS),​ 72 °C rate of rise (BR)



Physical

Physical dimensions
110 x 58 mm (Ø x D)
Net weight
0.2 kg
Colour
White
Mounting type
Ceiling mount



Environmental

Operating temperature
-10 to +55°C
Storage temperature
-10 to +30°C (with batteries)
-10 to +55°C (without batteries)
Relative humidity
95% noncondensing max.
Environment
Indoor
IP rating IP21C



Regulatory

Compliancy
CE
Certification
CPR
Standards
EN54-3
EN54-5
EN54-7
EN54-13
EN54-23
EN54-25
