Vimpex Identi-Leak 10m Water Detection Cable Kit
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.

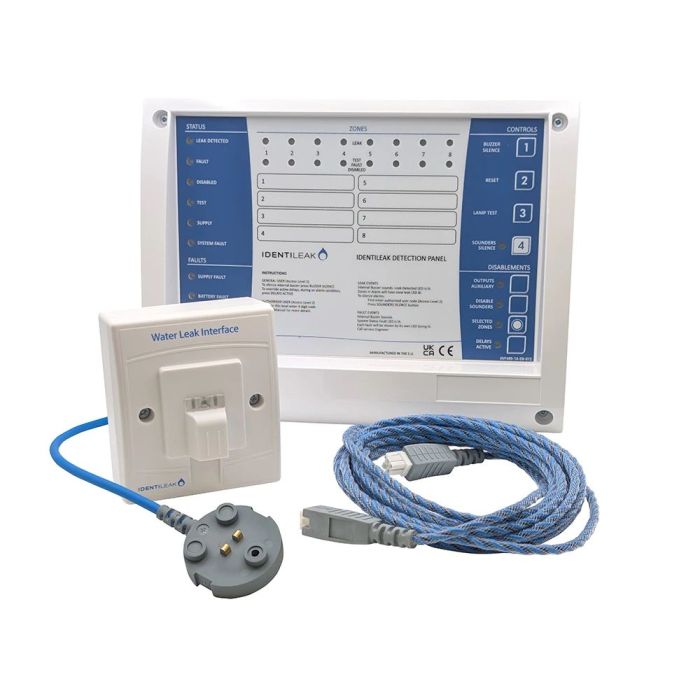

A 10m Water Detection Cable Kit which comes with the following:
- IL-WDC-10 Identi-Leak 10M Water Detection Cable
- IL-INT-S Identi-Leak Water Leak Detection Interface - Surface
- IL-WDC-T Identi-Leak Water Detection Cable Termination link
The Identi-Leak uses similar system infrastructure to fire alarm systems continuously monitors for Escape of Water, giving building and facilities managers early indication of potentially devastating water leak events. Thanks to battery back up, Identi-Leak systems work 24 hours a day, protecting buildings from damage, even during power outage.
Protect Your Property 24/7 with Reliable Leak Monitoring
Escape of water and damage due to leakages is an ever-growing risk to business continuity and is an increasing occurrence in residential properties. UK insurance companies are paying out over £987 million in water damages a year...
Identi-Leak, uses a similar system infrastructure to fire alarm systems, continuously monitors for Escape of Water, giving building and facilities managers an early indication of potentially devastating water leak events. Thanks to battery backup, Identi-Leak systems work 24 hours a day, protecting buildings from damage, even during a power outage.
Identi-Leak systems are designed to suit a wide range of applications. From compact setups in residential properties to complex installations in hospitals, data centres, and telecoms sites, the system is fully scalable and easy to install.
Detection is available via probes for pinpoint accuracy or a detection cable for wider coverage. Both can be installed within the same zone, making it ideal for environments like raised floors, ceiling voids, drip trays, plant rooms and more.
Identi-Leak can be seamlessly integrated into Building Management Systems (BMS) and linked to solenoid valves for automatic shutoff in the event of a leak.
Identi-Leak is suitable for use in: Data Centres, Hospitals, Residential Properties, Historical Buildings, Libraries, Archives, Underground Networks, Pubs, Restaurants, Lift Shafts and more
| Clearance | No |
|---|
IL-Mini-2 Specification
| Mains Supply |
230 Vac |
| Output Voltage |
28.5 nominal Vdc |
| Battery Size Max |
12 Vdc 1.2Ah (2 Batteries) |
| Dedicated Sounder Circuits | 24 Vdc, fused at 300 mA |
| Detection Circuit EOL |
Active EOL – Capacitor |
| Sounder Circuit EOL |
10K Ohms, 0.25 W |
| IP Rating |
IP30 |
| Operating Temperature-10ºC to 50ºC |
-10ºC to 50ºC |
| Construction | Fire Rated ABS |
| Colour | White |
| Dimensions (HxWxD) |
256x194x86 mm |
| Weight | 1.1 Kg |
