In stock
Product Code
GO1+
SKU
AD8501P

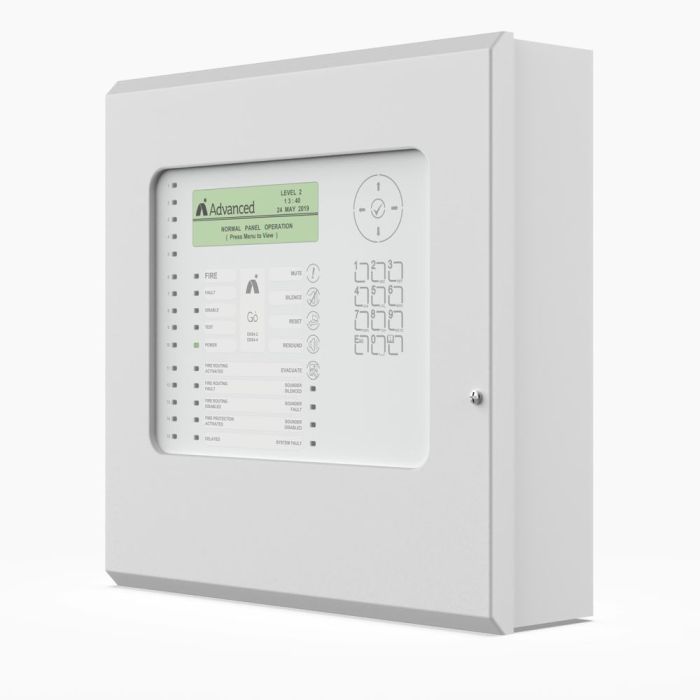

Advanced Go1+ 1 Loop Addressable Apollo Hochiki Fire Panel
1 Loop Addressable Fire Alarm Panel
Apollo/Hochiki Protocol
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
The new Go series is an evolution for non-networked single-loop fire alarm systems. Its innovative design includes several improvements and upgrades to critical safety features, while
retaining all the benefits and user-friendly operation of an Advanced fire alarm control panel.
retaining all the benefits and user-friendly operation of an Advanced fire alarm control panel.
A new ergonomic layout of control panel is combined with our high resolution, high contrast, graphical LCD display. The tactile keypad allows simple select-and-click programming for faster
engineer configuration and simple end-user operation.
engineer configuration and simple end-user operation.
Two performance options are available with a different maximum number of configurable addresses, allowing greater flexibility for site-specific installations: Go and Go+.
Functional improvements include integral zonal LEDs which enable instant identification of alarm locations, and ensure compliance with BS5839 without the cost of a separate LED
zone card.
zone card.
The new PCB integrates both control panel and peripherals on the same board and incorporates the latest high-speed microprocessor technology, for 9 times faster operation than MxPro 4.
Powerful cause-and-effect programming and enhanced trace diagnostics make the panel suitable for a wide range of site applications, from small to medium systems.
All Go series panels are fully programmable on site via the control panel display or with our updated, easy-to-use PC Configuration Tool.
Features
- Multiprotocol support, Apollo (Discovery, XP95), Hochiki (ESP)
- Graphical LCD user interface, LED indicators & push buttons
- Installer-friendly Auto-learn, Loop detection and On-board scope facility
- 500 fire + 5000 general event logging, with advanced diagnostic precision to aid installation & fault-finding
- Integral 15 Zone LEDs ensures compliance with BS5839, with 35 additional software indication zones
- Uses a new Configuration Tool with Office365 appearance with better graphics and easier functions for programming
- Two on-board Sounder outputs, three on-board Relay outputs
- Optional 3 monitored input/outputs for Fire/Fault routing (with P-Bus adaptor & routing card) for full EN54 compliance when connected to an Alarm Receiving Centre
- Dedicated USB Type B port for direct PC connection
- Future ethernet connectivity to AdvancedLive, which will provide remote notification and panel management
- Innovative 'no hinge' removable door and hangable chassis for easier installation
- Employing an identical monitoring feature as the Mx-5000 series, the Go series meets the requirements of EN54-13 (2005) Clauses 5.3.4.1 and 5.3.4.2 (partial open & short circuits) for optimal fire system performance and complete peace of mind
| Approval | EN54-2 , EN54-3, EN54-13 |
|---|---|
| Category Type | Panel |
| Colour | Grey |
| IP Rating | IP30 |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
| Protocols | Apollo (XP95, Discovery), Hochiki (ESP) |
| Number of Loops | 1 |
| Loop Current | 500mA max |
| Number of Fire Zones | 50 Max |
| Sounder Outputs | 2 x 1A Programmable (1A total) |
| Relay Outputs | (Programmable) 3 x 1A 30VAC/DC (max) to 10mA 5V (min) |
| Auxiliary Output | 24V DC, 100mA (With GOP-001 Fitted) |
| Display | LCD White backlit 240 x 64 Graphical LCD |
| Programmable Inputs | 1 x Key Switch, 1 x monitored |
| USB | USB type B interface for PC connection |
| Network | None |
| Ethernet | 10-Base-T, 100-Base-T |
| Event Log | 5000 Events with Diagnostics + 500 Fire Events |
| Enclosure | Steel IP30 RAL7035 |
| Dimensions H x W x D mm | 345 x 345 x 87 |
| Weight (excluding batteries) | 4Kg |
| Temperature Range | -5°C to 40°C |
| Humidity (RH) | 95% max |
| Cable Entries | 14 x 20mm knockouts at top |
| AC Supply | 220-240V, 50 – 60 Hz, 1.0A max |
| Safety | EN62368-1, Class 1, Pollution Degree 2, Overvoltage Category II |
| Battery Capacity | 24V 4Ah Internal (min), 24V 7Ah Internal (max) |
| Charging Current | 0.35A Temp Compensated |
| Deep Discharge Cut-off | 19.5V |
| Power Supply On-board | 24V DC, 1.5A High Efficiency Off-Line Switched Mode |
| Output Voltage | 18.0V – 28.0V |
| Ripple (Vpkpk) | Up to 1.0V |
| Max Battery Ohms | 1.8Ω ± 0.1Ω |
| Imax(a), Imax(b) | 1.15A, 1.5A |
